775-PC

led_product_slider_desktop_775pc_01
Our opal diffuser has an

outstanding light transmissivity up to 90%. With this great light permeability, it is an excellent choice for luminaries equipped with LED modules

led_product_slider_desktop_775pc_02

The Opal diffusers are made of UV stabilized opalised material, specially developed for LED applications. This ensures among others a well-balanced light distribution and the elimination of glare.

Moreover the diffuser made of injection moulded polycarbonate (PC) excels at highest impact resistance of IK<10.

led_product_slider_desktop_775pc_02

A. Usual stainless steel clips for SELV Safety Extra Low Voltage) solutions.

B. The special tamper-proof stainless steel clips for non-SELV (HV) solutions can not be released with bare hands

led_product_slider_desktop_775pc_03

The gear tray is made of white powder coated steel sheet according to Zhaga standards. On request customisation is possible.

led_product_slider_desktop_775pc_04

Ways of installing

1. With stainless steel suspension brackets (easy-to-install) onto the ceiling.

2. Suspension on chains with stainless steel suspension brackets mounted with hooks.

led_product_slider_desktop_775pc_05

In order to ensure maximum heat chemical and weather resistance even under tough conditions, the gasket between the diffuser and the housing is made of the silicon-based foam with enhanced durability

A. 775-PC with motion sensor

led_product_slider_desktop_775pc_06

Light sources suffer from degradation in light output over time. The CLO feature enables LED solutions to deliver constant lumen output through the life of the light engine.

led_product_slider_desktop_775pc_06

Further accessories:

1. cable gland
Different connectors enabling the electrical connection without disassembling the luminaire, thus avoiding a potential damage of the LED’s inside the luminaire through electrostatic discharge (ESD).

2. rapid connector

3. circular connector system

led_product_slider_desktop_775pc_07

Depending on customer requirements we can reach different levels of luminous flux (lumen) as well as luminous efficacy (Im/Watt). Details see attached overview.

led_product_slider_desktop_775pc_08

In order to optimise the thermal management of the luminaire we avoid the direct contact of the gear tray and driver, thus increasing the lifetime of the modules and driver.

led_product_slider_mobile_775pc_01
Our opal diffuser has an

outstanding light transmissivity up to 90%. With this great light permeability, it is an excellent choice for luminaries equipped with LED modules

led_product_slider_mobile_775pc_02

The Opal diffusers are made of UV stabilized opalised material, specially developed for LED applications. This ensures among others a well-balanced light distribution and the elimination of glare.

led_product_slider_mobile_775pc_02

Moreover the diffuser made of injection moulded polycarbonate (PC) excels at highest impact resistance of IK<10.

led_product_slider_mobile_775pc_02

A. Usual stainless steel clips for SELV Safety Extra Low Voltage) solutions.

B. The special tamper-proof stainless steel clips for non-SELV (HV) solutions can not be released with bare hands

led_product_slider_mobile_775pc_03

The gear tray is made of white powder coated steel sheet according to Zhaga standards. On request customisation is possible.

led_product_slider_mobile_775pc_04

Ways of installing

1. With stainless steel suspension brackets (easy-to-install) onto the ceiling.

2. Suspension on chains with stainless steel suspension brackets mounted with hooks.

led_product_slider_mobile_775pc_05

In order to ensure maximum heat chemical and weather resistance even under tough conditions, the gasket between the diffuser and the housing is made of the silicon-based foam with enhanced durability

A. 775-PC with motion sensor

led_product_slider_mobile_775pc_06

Light sources suffer from degradation in light output over time. The CLO feature enables LED solutions to deliver constant lumen output through the life of the light engine.

led_product_slider_mobile_775pc_06

Further accessories:

1. cable gland
Different connectors enabling the electrical connection without disassembling the luminaire, thus avoiding a potential damage of the LED’s inside the luminaire through electrostatic discharge (ESD).

led_product_slider_mobile_775pc_06

Further accessories:

2. rapid connector

3. circular connector system

led_product_slider_mobile_775pc_07

Depending on customer requirements we can reach different levels of luminous flux (lumen) as well as luminous efficacy (Im/Watt). Details see attached overview.

led_product_slider_mobile_775pc_08

In order to optimise the thermal management of the luminaire we avoid the direct contact of the gear tray and driver, thus increasing the lifetime of the modules and driver.

PARAMETERS

Built-in

Options

Further options

On request

TECHNICAL DESCRIPTION

775-PC

Industrial dust and waterproof luminaires

YOUR MAIN BENEFITS

A professional luminaire for wide usage, that fulfils the strongest quality requirements. Especially for applications, where high impact resistance (IK rating) is required. Available in IP65 (or optionally also IP66 or IP67).

FIELD OF APPLICATION

Due to the construction principles of gasket, closing system and diffuser our fixtures ensure a high grade of protection (IP65 or IP66) against dust, contamination, and water permeation. (Optionally available in IP67). In accordance with their IP-grade they can be used widely to illuminate spaces with dusty and humid environment. Thanks to its enhanced impact resistance, 775-PC is especially suitable for applications, where a high IK impact rating is required. When using outdoors, the fittings should be protected against direct sunlight and adverse weather conditions. Under 0°C the application of venting cable gland is necessary, as well as silicone gasket is strongly recommended.




TECHNICAL DESCRIPTION AND BENEFITS

Housing: It is made of flame retardant injection moulded polycarbonate (PC) (suitable for 850°C glow wire test), in light grey (RAL7035) colour. This material has very high mechanical strength and allows us to reach an excellent shock resistance.

The diffuser is available in the following versions:

Injection moulded polycarbonate (PC), opal, with a shock resistance of IK10, with extremely high light permeability and well-balanced light dispersing. As option injection moulded acrylic (PMMA) diffuser in opal version is available. (not IK10) The diffusers are designed with respect to their optical characteristics and are UV resistant.

The gasket between the diffuser and the housing is available in two versions:

– Injected silicone-based endless foam

– Non-aging PU (polyurethane) endless foam

Fixing of the diffuser to the body: with highly resistant clips made of stainless steel (standard or tamperproof).

Gear tray (reflector): White powder coated steel sheet according to Zhaga standards or customised.

Electrical components: in accordance with the requested specification suitable for LED technology, details see under technical data.




DOWNLOAD

Catalogue pages

Schematic drawing

Mounting instructions

Quality Certificates and Declarations

BIM

Product pictures

Photometric data

Photometric curves

Technical datasheets

MOUNTING INSTALLATION

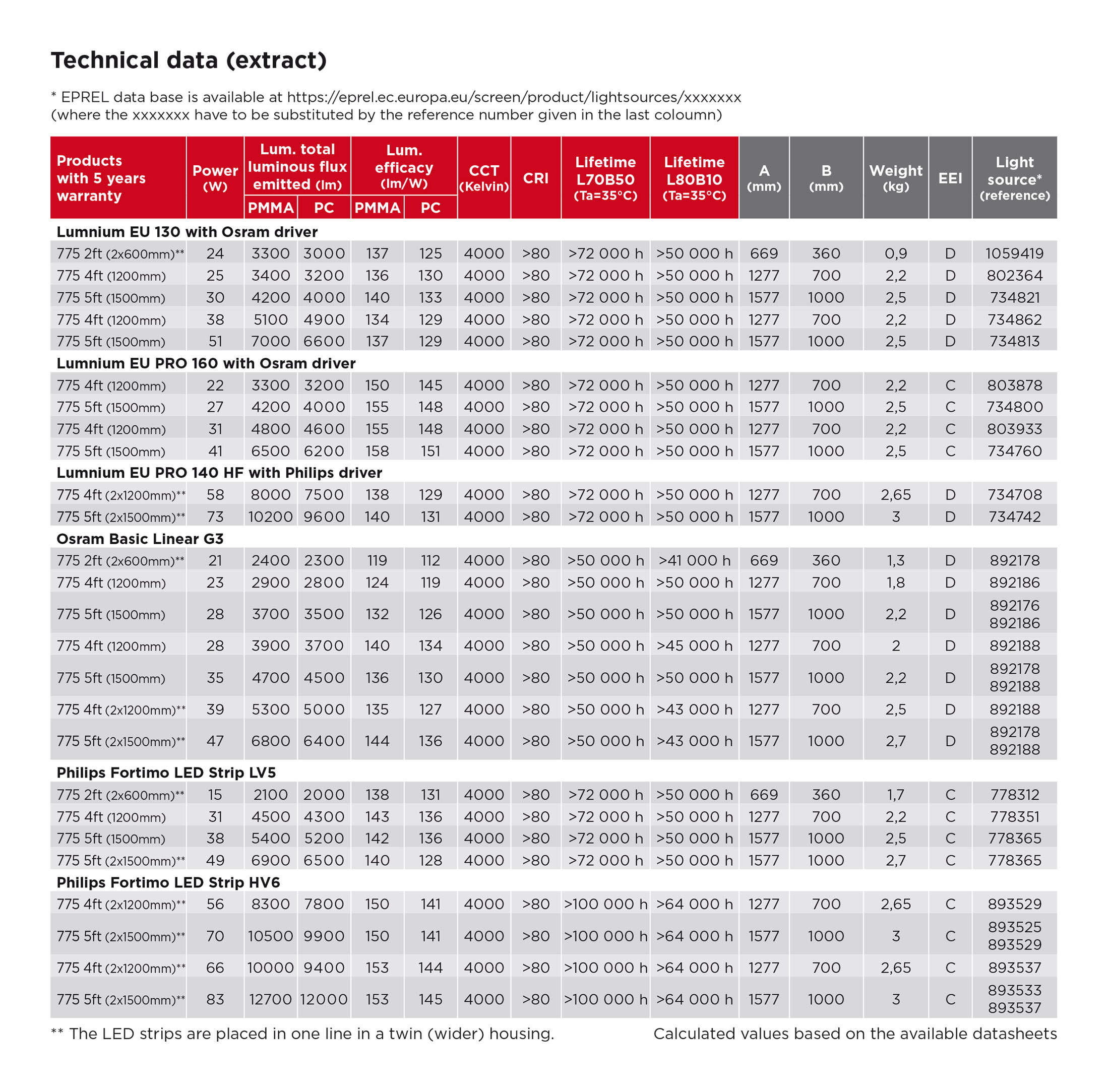

TECHNICAL DATA
