771-PRO LT

led_product_slider_desktop_retrofitled771prolt_01
Optimised economical packaging with plastic net. On request traditional carton box or retail-box packaging is available
led_product_slider_desktop_retrofitled771prolt_02
Retrofit LED 746-Pro LT has been designed for LED tubes.

The transparent prismatic diffusers are designed with respect to their optical characteristics and are UV resistant.

Fixing the diffuser to the body: with highly resistant stainless steel clips

led_product_slider_mobile_retrofitled771prolt_01
Optimised economical packaging with plastic net. On request traditional carton box or retail-box packaging is available
led_product_slider_mobile_retrofitled771prolt_02
Retrofit LED 746-Pro LT has been designed for LED tubes.

The transparent prismatic diffusers are designed with respect to their optical characteristics and are UV resistant.

Fixing the diffuser to the body: with highly resistant stainless steel clips

PARAMETERS

Built-in

Options

TECHNICAL DESCRIPTION

RETROFIT LED 771-PRO LT

Industrial dust and waterproof luminaires With 1 and 2 LED tubes.

YOUR MAIN BENEFITS

This product family has been designed for energy efficient LED tubes. Full range available in IP65 and IP66.

FIELD OF APPLICATION

Thanks to the construction principals of gasket, closing system and diffuser our fixtures ensure a high grade of protection (IP65, IP66) against dust, contamination, and water permeation. In accordance with their IP grade they can be widely used to illuminate spaces with dusty and humid environment. When using outdoors, the fittings should be protected against direct sunlight and adverse weather conditions. Under 0°C the application of venting cable gland is necessary, as well as silicone gasket is strongly recommended.




TECHNICAL DESCRIPTION AND BENEFITS

Housing: It is made of flame retardant glass fibre reinforced polyester (GRP) – on request suitable for 850°C glow wire test too –, in light grey (RAL7035) colour. This material has very good temperature resistance, mechanical stability, furthermore it is a good electrical insulator, it resists the impacts of several chemicals and the impacts of weather conditions. Its stability of size and shape at changing temperatures is excellent.

The diffuser is available in the following versions:

Injection moulded acrylic (PMMA): transparent, with longitudinal prisms, designed with respect to their optical characteristics. Main advantages of PMMA: very good transparency (better than the transparency of glass), unique non-aging properties, high chemical- and UV-resistance.

Injection moulded polycarbonate (PC): transparent, with longitudinal internal prisms, designed with respect to their optical characteristics.

Main advantages of PC: high mechanical strength and high heat and shock resistance.

The gasket between the diffuser and housing is made of non-aging PU (polyurethane) foam. Silicone-based foam with enhanced resistance is optionally available.

Fixing the diffuser to the body: with stainless steel clips.

Gear tray (reflector): white powder coated steel sheet.

Way of installing: with stainless steel mounting brackets (easy-to-install) onto the wall or ceiling or suspended.

Electrical components: The adequate power supply is ensured through electronic driver, that is built in into the LED tube.




DOWNLOAD

Catalogue pages

Schematic drawing

Mounting instructions

Quality Certificates and Declarations

Product pictures

BIM

Photometric data

Photometric curves

Technical datasheets

MOUNTING INSTALLATION

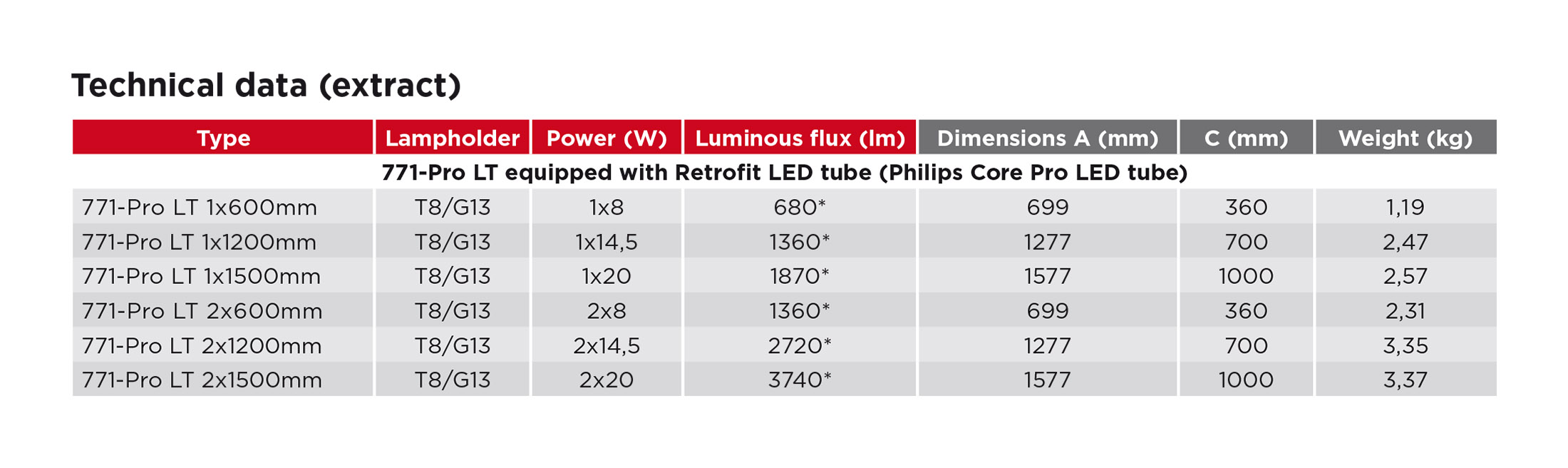

TECHNICAL DATA
