771-EXTREME-LED

led_product_slider_desktop_771extreme-30c_01

In order to ensure maximum heat chemical and weather resistance even under tough conditions, the gasket between the diffuser and the housing is made of the silicon-based foam with enhanced durability

led_product_slider_desktop_771extreme-30c_02
Comes with venting cable gland in order to prevent the build-up of moisture inside the luminaire thus avoiding its damage.
led_product_slider_desktop_771extreme-30c_03
Quick installation with stainless steel suspension brackets.
led_product_slider_desktop_771extreme-30c_04

The Opal diffusers are made of UV stabilized opalised material, specially developed for LED applications. This ensures among others a well-balanced light distribution and the elimination of glare.

led_product_slider_mobile_771extreme-30c_01

In order to ensure maximum heat chemical and weather resistance even under tough conditions, the gasket between the diffuser and the housing is made of the silicon-based foam with enhanced durability

led_product_slider_mobile_771extreme-30c_02
Comes with venting cable gland in order to prevent the build-up of moisture inside the luminaire thus avoiding its damage.
led_product_slider_mobile_771extreme-30c_03
Quick installation with stainless steel suspension brackets.
led_product_slider_mobile_771extreme-30c_04

The Opal diffusers are made of UV stabilized opalised material, specially developed for LED applications. This ensures among others a well-balanced light distribution and the elimination of glare.

PARAMETERS

led_product_slider_desktop_870inspireair_01

Our now opalised diffuser made of UV-stabilized material achieves an outstanding light transmissivity up to 90%. This great light permeability otter high efficacy (up to 160 lm/W) emitted from the luminaire.
Feel free to choose from our two types of slightly different diffuser designs.

A. The original diffuser design

B. The modified oval variant

led_product_slider_desktop_870inspireair_02
In the interest of LED board protection the gear tray is integrated into the diffuser thus enabling a cost efficient and user-friendly quick installation even without disassembling the luminaire.

The stainless steel clips stay in their position during installation and can be released by bare hands.

Compatible with all optional accessories and smart solutions!
led_product_slider_desktop_870inspireair_03

Installation friendly construction:

The strap ensures suspension of the gear tray and the diffuser during installation.

In order to optimise the thermal management of the luminaire and to maximize the lifetime of the led modules, the driver is placed into the body without direct contact to the gear tray.

led_product_slider_desktop_870inspireair_04

The gear tray, made of white powder coated steel sheet according to Zhaga standards, is integrated into the diffuser.

With 870-Inspire Air- depending on customer requirements - we can reach different levels of luminous flux from 2700 up to 14500 lumen, with maximum efficacy of 160 lm/W. Details see technical data

led_product_slider_desktop_870inspireair_05
The injected silicon-based gasket with enhanced resistance ensures maximum chemical and weather resistance even under tough conditions. This endless foam sealing ensures the high IP protection up to IP66.
led_product_slider_desktop_870inspireair_06
Options for cable entry:

A. IP66 Gormet

B. Cable Gland

C. The Rapid Connector enables the electrical connection without disassembling the luminaire
led_product_slider_desktop_870inspireair_07

Ways of installing 1 (options):

With strenghtened (0,6 mm) stainless steel mounting brackets.

1.a They are easy-to-install onto the wall or the ceiling in horizontal position

led_product_slider_desktop_870inspireair_07

Ways of installing 2 (options):

1.b In case of vertical positioning, special screws keep the mounting brackets tight avoiding the luminaire from sliding.

Easy installation: Adjustable distance of the mounting brackets (they can be positioned laterally on the housing.

led_product_slider_mobile_870inspireair_01

Our now opalised diffuser made of UV-stabilized material achieves an outstanding light transmissivity up to 90%. This great light permeability otter high efficacy (up to 160 lm/W) emitted from the luminaire.
Feel free to choose from our two types of slightly different diffuser designs.

led_product_slider_mobile_870inspireair_01

A. The original diffuser design

B. The modified oval variant

led_product_slider_mobile_870inspireair_02
In the interest of LED board protection the gear tray is integrated into the diffuser thus enabling a cost efficient and user-friendly quick installation even without disassembling the luminaire.

The stainless steel clips stay in their position during installation and can be released by bare hands.

Compatible with all optional accessories and smart solutions!
led_product_slider_mobile_870inspireair_03

Installation friendly construction:

The strap ensures suspension of the gear tray and the diffuser during installation.

In order to optimise the thermal management of the luminaire and to maximize the lifetime of the led modules, the driver is placed into the body without direct contact to the gear tray.

led_product_slider_mobile_870inspireair_04

The gear tray, made of white powder coated steel sheet according to Zhaga standards, is integrated into the diffuser.

With 870-Inspire Air- depending on customer requirements - we can reach different levels of luminous flux from 2700 up to 14500 lumen, with maximum efficacy of 160 lm/W. Details see technical data

led_product_slider_mobile_870inspireair_05
The injected silicon-based gasket with enhanced resistance ensures maximum chemical and weather resistance even under tough conditions. This endless foam sealing ensures the high IP protection up to IP66.
led_product_slider_mobile_870inspireair_06
Options for cable entry:

A. Comes with venting cable gland in order to prevent the build-up of moisture inside the luminaire thus avoiding its damage.

led_product_slider_mobile_870inspireair_06
Options for cable entry:

B. The Rapid Connector enables the electrical connection without disassemblingthe luminaire

C. The venting plug is a pressure equializer instead of the venting cable gland in case of application of rapid connector.

led_product_slider_mobile_870inspireair_07

Ways of installing (options):

With strenghtened (0,6 mm) stainless steel mounting brackets.

1.a They are easy-to-install onto the wall or the ceiling in horizontal position

led_product_slider_mobile_870inspireair_07


Ways of installing (options):

1.b In case of vertical positioning, special screws keep the mounting brackets tight avoiding the luminaire from sliding.

Easy installation: Adjustable distance of the mounting brackets (they can be positioned laterally on the housing.

PARAMETERS

Built-in

Options

Further options

On request

TECHNICAL DESCRIPTION

771-EXTREME -30°C

Industrial dust and waterproof luminaires with LED modules for ambient temperature down to Ta -30 °C.

With a new, opalised diffuser with unique light transmissivity! Specially developed for LED applications.

YOUR MAIN BENEFITS

The shape of 771-Favourite adapted for extremely low (-30°C) ambient temperatures.

FIELD OF APPLICATION

Thanks to the construction principles of gasket, closing system and diffuser our LED fixtures ensure a high grade of protection (IP65, IP66) against dust, contamination, and water permeation even at extremely low ambient temperature. In accordance with their IP grade, they can be widely used to illuminate spaces with dusty, humid environment down to Ta -30 °C.

TECHNICAL DESCRIPTION AND BENEFITS

Diffuser: Our LED luminaires with opal diffuser offer you:
– very good light efficiency through high light permeability, (up to 90% light transmissivity)
– the usual, well-known features of the diffuser such as chemical and heat resistance, mechanical features, UV stabilization etc.
Available in PC – injection moulded Polycarbonate.
Main advantages: high mechanical strength and high heat and shock resistance

Housing: It is made of flame retardant glass fibre reinforced polyester (on request suitable for 850°C glow wire test too), in light grey (RAL7035) colour. Glass fibre reinforced polyester has very good temperature resistance, mechanical stability, furthermore it is a good electrical insulator, it resists the impacts of several chemicals and the impacts of weather conditions. Its stability of size and shape at changing temperatures is excellent.

In order to ensure maximum temperature, chemical and weather resistance even under tough conditions.

Gasket: silicon-based endless foam with enhanced resistance.

Fixing of the diffuser to the body: with highly resistant stainless-steel clips (standard or tamper-proof version).

 Gear tray (reflector): White powder coated steel sheet according to Zhaga standards or customised.

 Electrical components: in accordance with the requested specification suitable for LED technology, details see under technical data.

DOWNLOAD

Catalogue pages

Schematic drawing

Mounting instructions

Quality Certificates and Declarations

BIM

Product pictures

Photometric data

Photometric curves

Technical datasheets

MOUNTING INSTALLATION

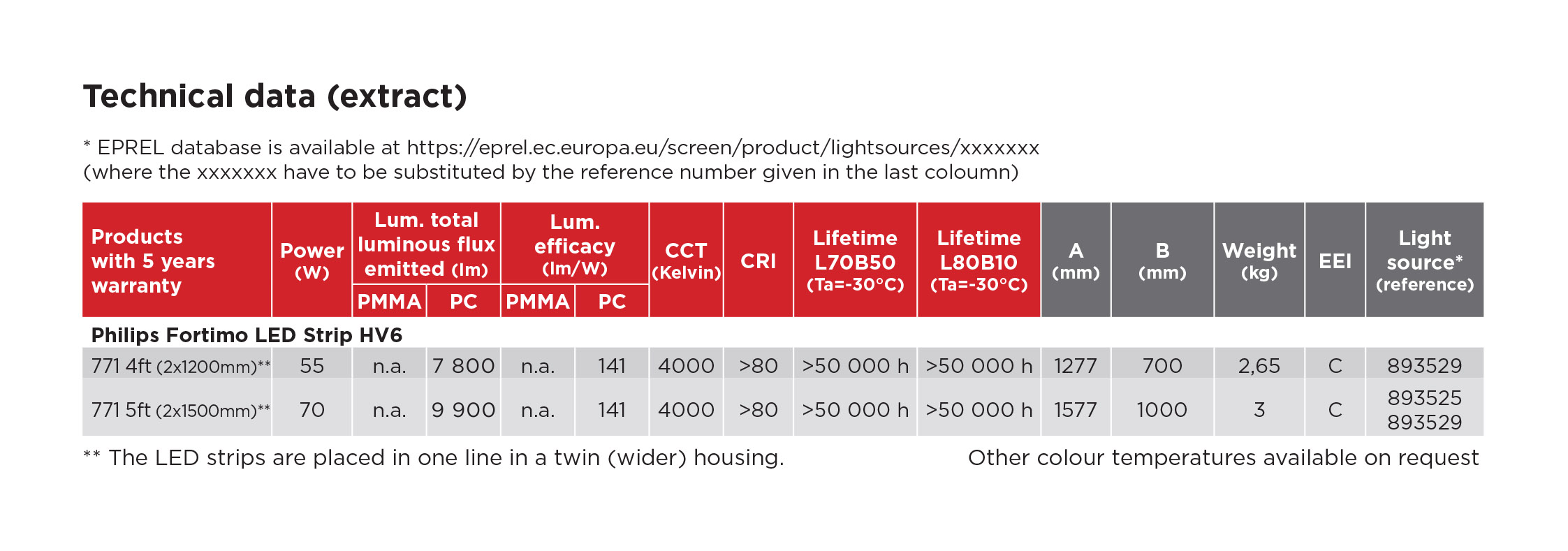

TECHNICAL DATA
