870-INSPIRE GRP

led_product_slider_desktop_870inspiregrp_01

Our now opalised diffuser made of UV-stabilized material achieves an outstanding light transmissivity up to 90%. This great light permeability otter high efficacy (up to 160 lm/W) emitted from the luminaire.
Feel free to choose from our two types of slightly different diffuser designs.

A. The original diffuser design

B. The modified oval variant

led_product_slider_desktop_870inspiregrp_02
In the interest of LED board protection the gear tray is integrated into the diffuser thus enabling a cost efficient and user-friendly quick installation even without disassembling the luminaire.

The stainless steel clips stay in their position during installation and can be released by bare hands
led_product_slider_desktop_870inspiregrp_03

Compatible with all accessories and smart solutions

led_product_slider_desktop_870inspiregrp_04

Installation friendly construction:

The strap ensures suspension of the gear tray and the diffuser during installation.

In order to optimise the thermal management of the luminaire and to maximize the lifetime of the led modules, the driver is placed into the body without direct contact to the gear tray.

led_product_slider_desktop_870inspiregrp_05

The gear tray, made of white powder coated steel sheet according to Zhaga standards, is integrated into the diffuser.

With 870-Inspire GRP - depending on customer requirements - we can reach different levels of luminous flux up to 14000 lumen, with maximum efficacy of 160lm/W. Details see technical data

led_product_slider_desktop_870inspiregrp_06
The injected silicon-based gasket with enhanced resistance ensures maximum chemical and weather resistance even under tough conditions. This endless foam sealing ensures the high IP protection up to IP67.
led_product_slider_desktop_870inspiregrp_07
Options for cable entry:

A. IP66 Gormet

B. Cable Gland

C. The Rapid Connector enables the electrical connection without disassembling the luminaire
led_product_slider_desktop_870inspiregrp_08

Ways of installing 1 (options):

With strenghtened (0,6 mm) stainless steel mounting brackets.

1.a They are easy-to-install onto the wall or the ceiling in horizontal position

1.b In case of vertical positioning, special screws keep the mounting brackets tight avoiding the luminaire from sliding.

led_product_slider_desktop_870inspiregrp_08

Ways of installing 2 (options):

2. suspension on chains or wire ropes with stainless steel suspension brackets mounted with hooks

Easy installation: Adjustable distance of the mounting brackets (they can be positioned laterally on the housing.

led_product_slider_mobile_870inspiregrp_01

Our now opalised diffuser made of UV-stabilized material achieves an outstanding light transmissivity up to 90%. This great light permeability otter high efficacy (up to 160 lm/W) emitted from the luminaire.
Feel free to choose from our two types of slightly different diffuser designs.

led_product_slider_mobile_870inspiregrp_01

A. The original diffuser design

B. The modified oval variant

led_product_slider_mobile_870inspiregrp_02
In the interest of LED board protection the gear tray is integrated into the diffuser thus enabling a cost efficient and user-friendly quick installation even without disassembling the luminaire.

The stainless steel clips stay in their position during installation and can be released by bare hands
led_product_slider_mobile_870inspiregrp_03

Compatible with all accessories and smart solutions

led_product_slider_mobile_870inspiregrp_04

Installation friendly construction:

The strap ensures suspension of the gear tray and the diffuser during installation.

led_product_slider_mobile_870inspiregrp_04

In order to optimise the thermal management of the luminaire and to maximize the lifetime of the led modules, the driver is placed into the body without direct contact to the gear tray.

led_product_slider_mobile_870inspiregrp_05

The gear tray, made of white powder coated steel sheet according to Zhaga standards, is integrated into the diffuser.

led_product_slider_mobile_870inspiregrp_05

With 870-Inspire GRP - depending on customer requirements - we can reach different levels of luminous flux up to 14000 lumen, with maximum efficacy of 160lm/W. Details see technical data

led_product_slider_mobile_870inspiregrp_06
The injected silicon-based gasket with enhanced resistance ensures maximum chemical and weather resistance even under tough conditions. This endless foam sealing ensures the high IP protection up to IP67.
led_product_slider_mobile_870inspiregrp_07
Options for cable entry:

A. IP66 Gormet

B. Cable Gland

C. The Rapid Connector enables the electrical connection without disassembling the luminaire
led_product_slider_mobile_870inspiregrp_08

Ways of installing 1 (options):

With strenghtened (0,6 mm) stainless steel mounting brackets.

1.a They are easy-to-install onto the wall or the ceiling in horizontal position

led_product_slider_mobile_870inspiregrp_08

Ways of installing 2 (options):

1.b In case of vertical positioning, special screws keep the mounting brackets tight avoiding the luminaire from sliding.

led_product_slider_mobile_870inspiregrp_08

Ways of installing 3 (options):

2. suspension on chains or wire ropes with stainless steel suspension brackets mounted with hooks

Easy installation: Adjustable distance of the mounting brackets (they can be positioned laterally on the housing.

PARAMETERS

Built-in

Options

Built-in

Options

Further options

On request

Further options

On request

TECHNICAL DESCRIPTION

870-INSPIRE GRP

High-end dust and waterproof luminaires with LED modules.

Synergy of art and technology Inspiring design in professional quality.

YOUR MAIN BENEFITS

Gear tray integrated into the diffuser.
Cost efficient and user-friendly installation even without disassembling the luminaire.

FIELD OF APPLICATION

Thanks to the construction principles of gasket, closing system and diffuser our LED fixtures ensure a high grade of protection (IP66) against dust, contamination, and water permeation. In accordance with their IP rating they can be widely used to illuminate spaces with dusty and humid environments.
When using outdoors, the fittings should be protected against direct sunlight and adverse weather conditions. Under 0°C the application of venting plug or venting cable gland is necessary, as well as the silicone gasket is recommended.



TECHNICAL DESCRIPTION AND BENEFITS

Housing: It is made of flame retardant GRP – glass fibre reinforced polyester (on request suitable for 850°C glow wire test too), in light grey (RAL7035) colour. Glass fibre reinforced polyester has very good temperature resistance, mechanical stability, furthermore, it is a good electrical insulator, it resists the impacts of several chemicals and the impacts of weather conditions. Its stability of size and shape at changing temperatures is excellent.

Diffuser: Available in Acrylic – injection moulded opalised PMMA (unique non-aging properties, high chemical resistance).

Further benefits:
Extremely high light transmissivity (up to 93%)
Homogenous, well-balanced light dispersing (no shadows)
Keeping the usual, well-known features of the diffuser such as chemical and heat resistance, mechanical features, UV stabilization etc.
Universal width (no single and twin) simplifies the light calculation.

Gasket: silicon-based endless foam with enhanced resistance.

Fixing the diffuser to the body: with highly resistant tamper-proof clips made of stainless steel.

Gear tray (reflector): white powder coated steel sheet according to Zhaga standards or customised.

Electrical components: The adequate power supply is ensured through a special hermetically sealed electronic driver – LUMNIUM Farmer HV.

DOWNLOAD

Catalogue pages

Schematic drawing

Mounting instructions

Quality Certificates and Declarations

BIM

Product pictures

Photometric data

Photometric curves

Technical datasheets

MOUNTING INSTALLATION

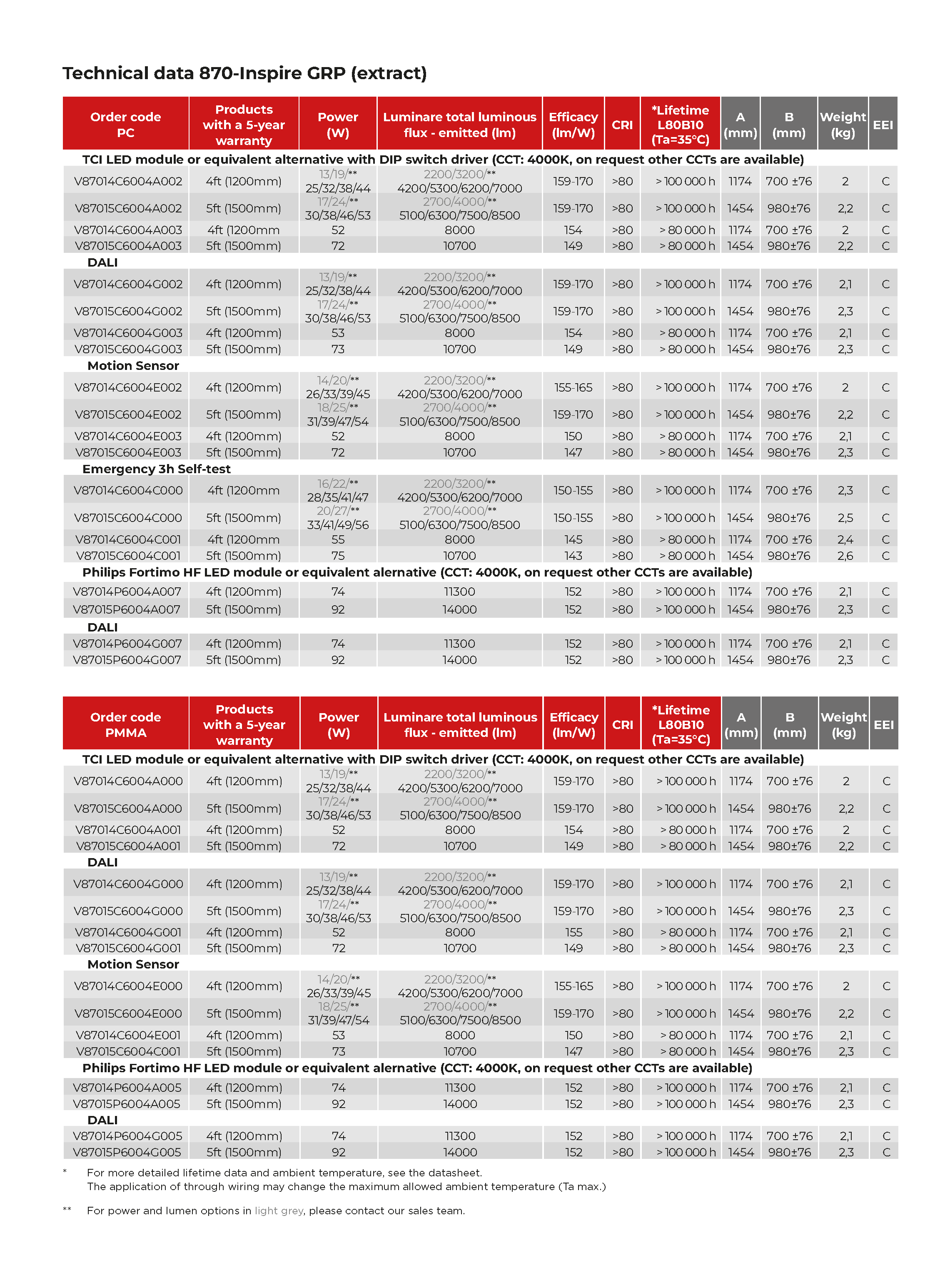

TECHNICAL DATA
