870-INSPIRE NB

led_product_slider_desktop_870inspirenb_01

Our now opalised diffuser made of UV-stabilized material achieves an outstanding light transmissivity up to 93%. This great light permeability otter high efficacy (up to 157 lm/W) emitted from the luminaire.

A. Narrow beam optics

led_product_slider_desktop_870inspirenb_02
In the interest of LED board protection the gear tray is integrated into the diffuser thus enabling a cost efficient and user-friendly quick installation even without disassembling the luminaire.

The stainless steel clips stay in their position during installation and can be released by bare hands
led_product_slider_desktop_870inspirenb_03

Compatible with all accessories and smart solutions

led_product_slider_desktop_870inspirenb_04

Installation friendly construction:

The strap ensures suspension of the gear tray and the diffuser during installation.

In order to optimise the thermal management of the luminaire and to maximize the lifetime of the led modules, the driver is placed into the body without direct contact to the gear tray.

led_product_slider_desktop_870inspirenb_05

The gear tray, made of white powder coated steel sheet according to Zhaga standards, is integrated into the diffuser.

With 870-Inspire NB- depending on customer requirements - we can reach different levels of luminous flux up to 14500 lumen, with maximum efficacy of 157 lm/W. Details see technical data

led_product_slider_desktop_870inspirenb_06
The injected silicon-based gasket with enhanced resistance ensures maximum chemical and weather resistance even under tough conditions. This endless foam sealing ensures the high IP protection up to IP67.
led_product_slider_desktop_870inspirenb_07
Options for cable entry:

A. IP66 Gormet

B. Cable Gland

C. The Rapid Connector enables the electrical connection without disassembling the luminaire
led_product_slider_desktop_870inspirenb_08

Ways of installing 1 (options):

With strenghtened (0,6 mm) stainless steel mounting brackets.

1.a They are easy-to-install onto the wall or the ceiling in horizontal position

1.b In case of vertical positioning, special screws keep the mounting brackets tight avoiding the luminaire from sliding.

led_product_slider_desktop_870inspirenb_08

Ways of installing 1 (options):

With strenghtened (0,6 mm) stainless steel mounting brackets.

1.a They are easy-to-install onto the wall or the ceiling in horizontal position

1.b In case of vertical positioning, special screws keep the mounting brackets tight avoiding the luminaire from sliding.

led_product_slider_mobile_870inspirenb_01

Our now opalised diffuser made of UV-stabilized material achieves an outstanding light transmissivity up to 93%. This great light permeability otter high efficacy (up to 157 lm/W) emitted from the luminaire.

A. Narrow beam optics

led_product_slider_mobile_870inspirenb_02
In the interest of LED board protection the gear tray is integrated into the diffuser thus enabling a cost efficient and user-friendly quick installation even without disassembling the luminaire.

The stainless steel clips stay in their position during installation and can be released by bare hands
led_product_slider_mobile_870inspirenb_03

Compatible with all accessories and smart solutions

led_product_slider_mobile_870inspirenb_04

Installation friendly construction:

The strap ensures suspension of the gear tray and the diffuser during installation.

led_product_slider_mobile_870inspirenb_04

In order to optimise the thermal management of the luminaire and to maximize the lifetime of the led modules, the driver is placed into the body without direct contact to the gear tray.

led_product_slider_mobile_870inspirenb_05

The gear tray, made of white powder coated steel sheet according to Zhaga standards, is integrated into the diffuser.

led_product_slider_mobile_870inspirenb_05

With 870-Inspire NB- depending on customer requirements - we can reach different levels of luminous flux up to 14500 lumen, with maximum efficacy of 157 lm/W. Details see technical data

led_product_slider_mobile_870inspirenb_06
The injected silicon-based gasket with enhanced resistance ensures maximum chemical and weather resistance even under tough conditions. This endless foam sealing ensures the high IP protection up to IP67.
led_product_slider_mobile_870inspirenb_07
Options for cable entry:

A. IP66 Gormet

B. Cable Gland

C. The Rapid Connector enables the electrical connection without disassembling the luminaire
led_product_slider_mobile_870inspirenb_08

Ways of installing 1 (options):

With strenghtened (0,6 mm) stainless steel mounting brackets.

1.a They are easy-to-install onto the wall or the ceiling in horizontal position

led_product_slider_mobile_870inspirenb_08

Ways of installing 2 (options):

1.b In case of vertical positioning, special screws keep the mounting brackets tight avoiding the luminaire from sliding.

led_product_slider_mobile_870inspirenb_08

Ways of installing 3 (options):

2. suspension on chains or wire ropes with stainless steel suspension brackets mounted with hooks

Easy installation: Adjustable distance of the mounting brackets (they can be positioned laterally on the housing.

PARAMETERS

Built-in

Options

Built-in

Options

Further options

On request

Further options

On request

TECHNICAL DESCRIPTION

870-INSPIRE NB

High-end dust and waterproof luminaires with LED modules and with narrow beam optics.

Synergy of art and technology. Perfect choice for high ceilings!

YOUR MAIN BENEFITS

Narrow beam luminaire, suitable for high ceilings, with transparent diffuser and narrow beam optics.
Ideal alternative to high bay fixtures, in a more cost-effective performance.

FIELD OF APPLICATION

Thanks to the construction principles of gasket, closing system and diffuser our LED fixtures ensure a high grade of protection (IP66) against dust, contamination, and water permeation. In accordance with their IP rating they can be widely used to illuminate spaces with dusty and humid environments.
When using outdoors, the fittings should be protected against direct sunlight and adverse weather conditions. Under 0°C the application of venting plug or venting cable gland is necessary, as well as the
silicone gasket is recommended.

TECHNICAL DESCRIPTION AND BENEFITS

Housing: Available in flame retardant GRP – glass fibre reinforced polyester (on request suitable for 850°C glow wire test too), in light grey (RAL7035) colour. Glass fibre reinforced polyester has very good temperature resistance, mechanical stability, furthermore, it is a good electrical insulator, it resists the impacts of several chemicals and the impacts of weather conditions. Its stability of size and shape at changing temperatures is excellent.
Or also available in flame retardant injection moulded polycarbonate (PC) (suitable for 850°C glow wire test), in light grey (RAL7035) colour. This material has very high mechanical strength and allows us to reach an excellent shock resistance.
Diffuser: Available in PC – injection moulded transparent Polycarbonate (high mechanical strength and high heat and shock resistance) or in Acrylic – injection moulded transparent PMMA (unique non-aging properties, high chemical resistance). With the use of transparent diffuser, a 40° narrow beam radiation angle is achievable for high bay applications.

Further benefits:
– Extremely high light transmissivity (up to 93%)
– Homogenous, well-balanced light dispersing (no shadows)
– Keeping the usual, well-known features of the diffuser such as chemical and heat resistance, mechanical features, UV stabilization etc.
– Universal width (no single and twin) simplifies the light calculation.



The gasket between the diffuser and the housing is available in two versions:
– Injected silicone-based endless foam
– Non-aging PU (polyurethane) endless foam



Fixing the diffuser to the body: With stainless steel clips.
Gear tray (reflector): The gear tray is integrated into the diffuser thus enabling a cost efficient and user-friendly installation even without disassembling the luminaire. White powder coated steel sheet, the LED modul mounting positions according to Zhaga standards or customized.
Electrical components: The adequate power supply is ensured through electronic driver.



DOWNLOAD

Catalogue pages

Schematic drawing

Mounting instructions

Quality Certificates and Declarations

BIM

Product pictures

Photometric data

Photometric curves

Technical datasheets

MOUNTING INSTALLATION

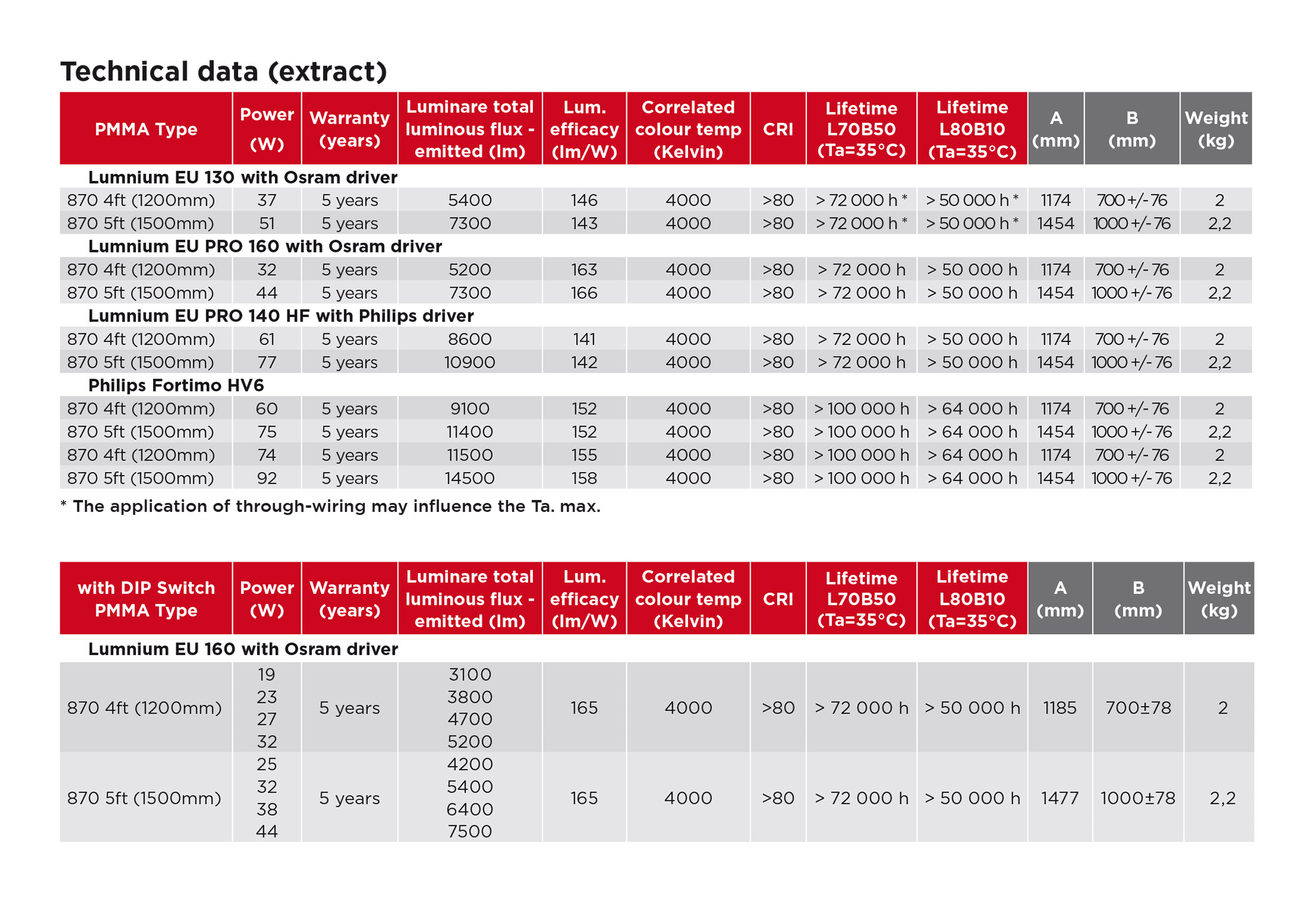

TECHNICAL DATA
