793-RESISTUBE

RESISTUBE_2560x535-1

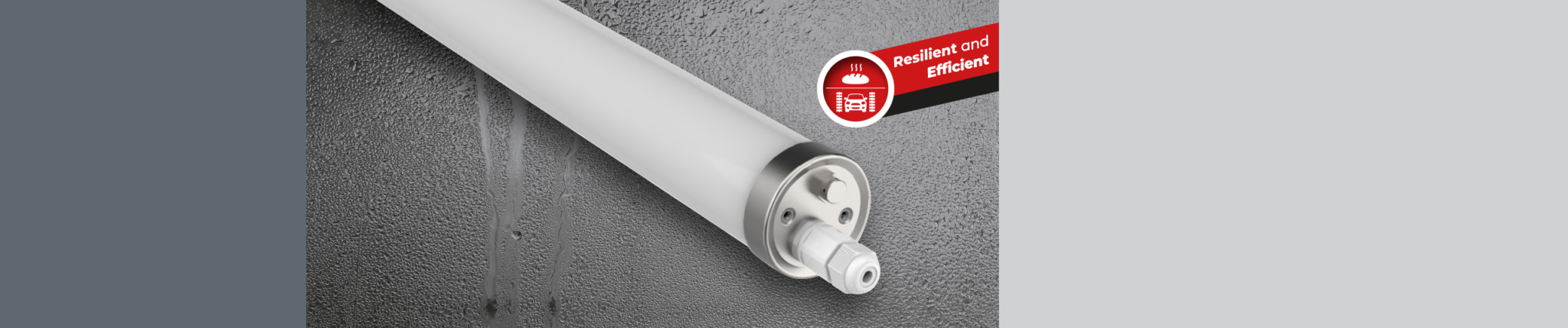

The IP69K rated luminaire is ideal for fields of application, where its ability to withstand the intrusion of solids and liquids is a must. It combats even high-pressure jets of hot water with no negative consequence. Perfect for food-processing industry, car washes, underpass areas and logistics sites
RESISTUBE_2560x535-2

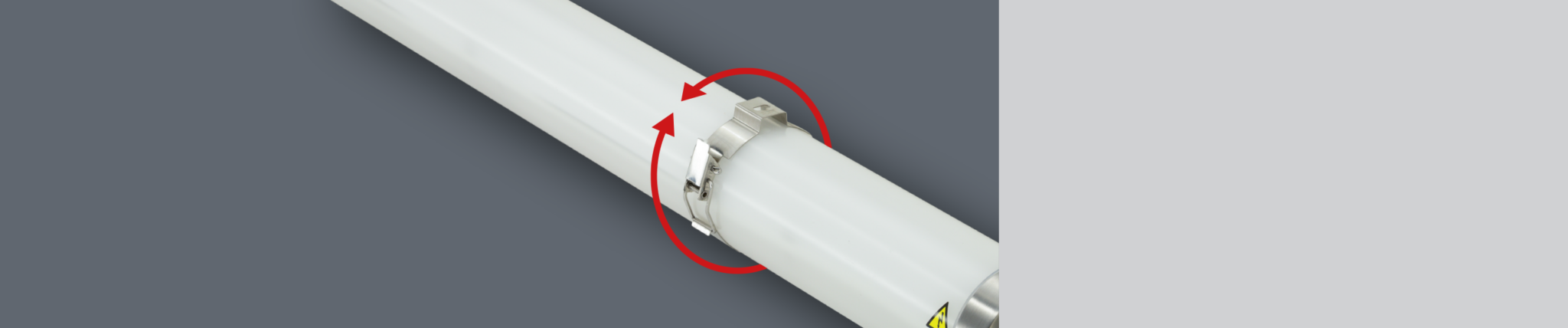

The extruded opal diffuser is made of UV stabilised, opalised material ensuring well balanced light distribution and non-glare illumination. The light angle is adjustable thanks to the freely rotatable tube in the clamps (no shadows).
RESISTUBE_2560x535-3

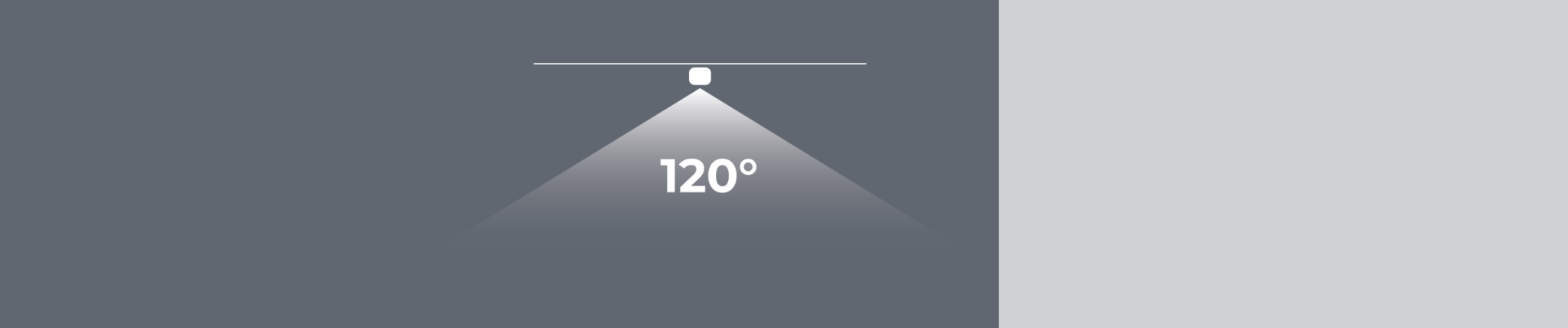

Resistube offers 120°beam angle ensuring wide beam light distribution with uniform lighting, even at low heights.
RESISTUBE_2560x535-4

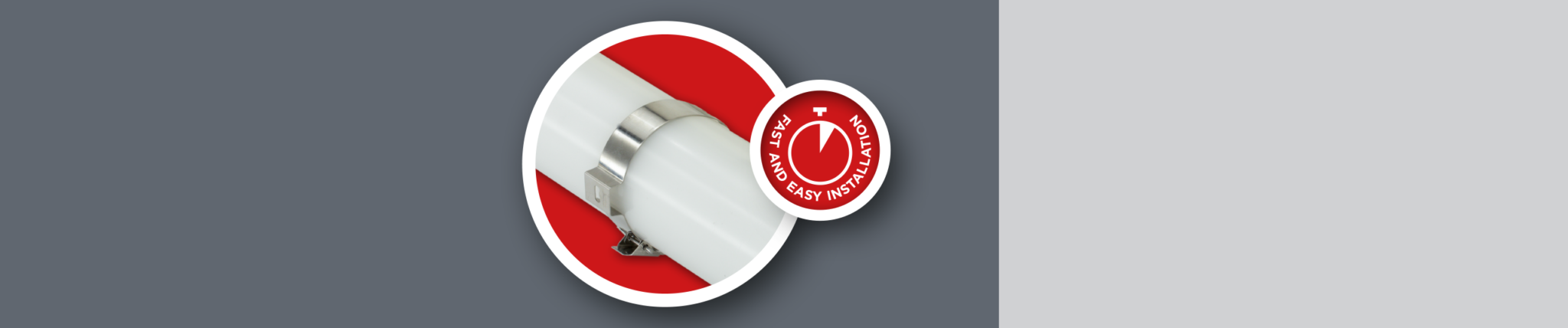

Mounting options: the lighting fixture can be installed either on surface (wall or ceiling) or suspended. The stainless-steel mounting clamps ensure fast and easy mounting, and they can be positioned freely on the luminaire. Thanks to the application of the rapid connector, electrical connection is also fast and easy.
RESISTUBE_2560x535-5

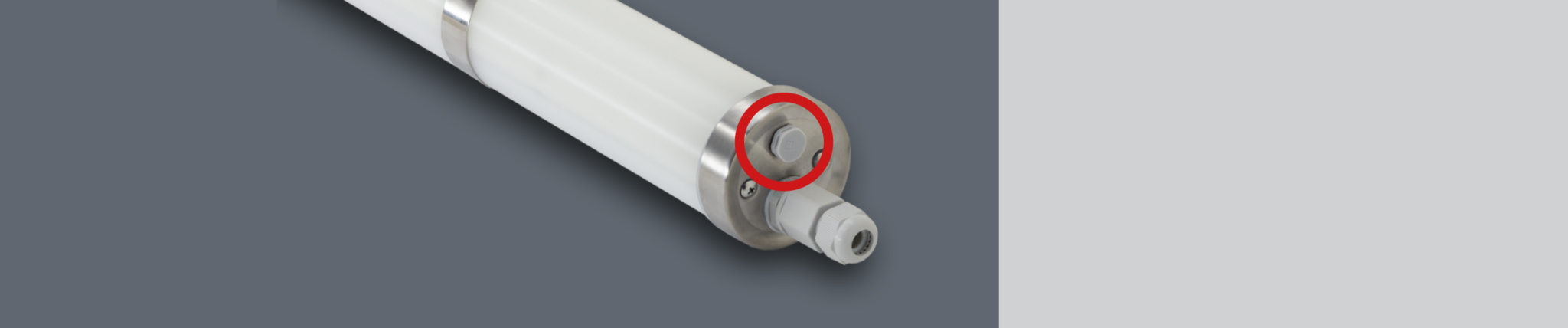

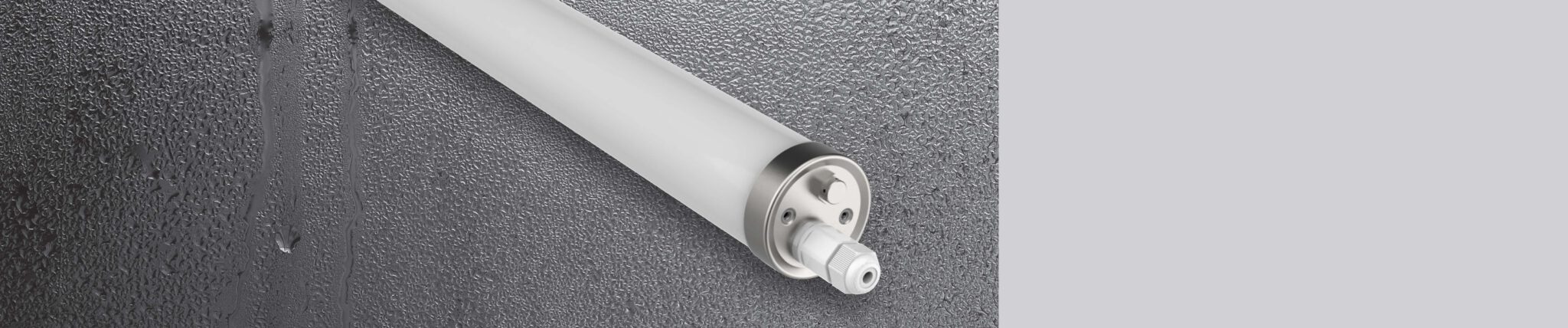

Resistube is ideal for food industry, not only because of its high IP protection, but also because of its venting plug that prevents the condensation of humidity inside the luminaire.
RESISTUBE_2560x535-6

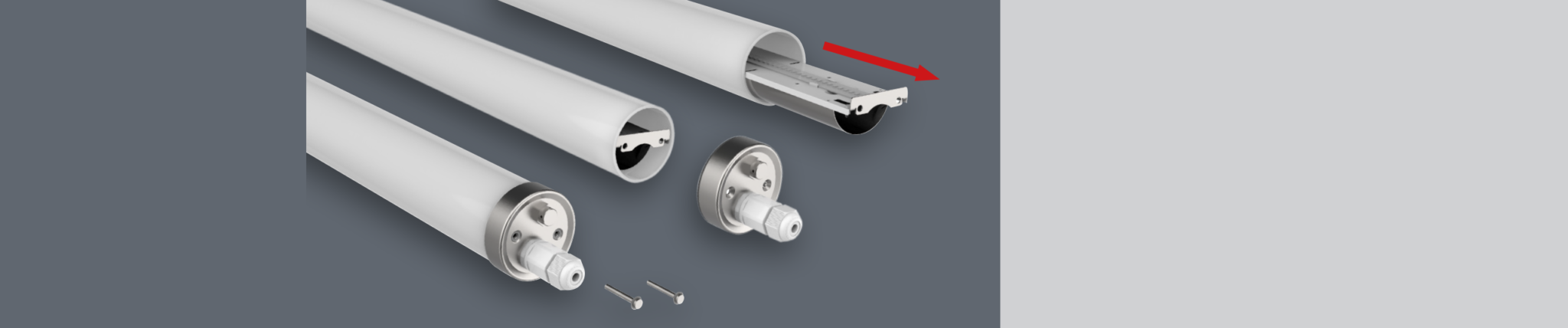

The lighting fixture provides repairable design allowing for the opening of the luminaire in 3 steps.
IBV_RESISTUBE_750x1154-1

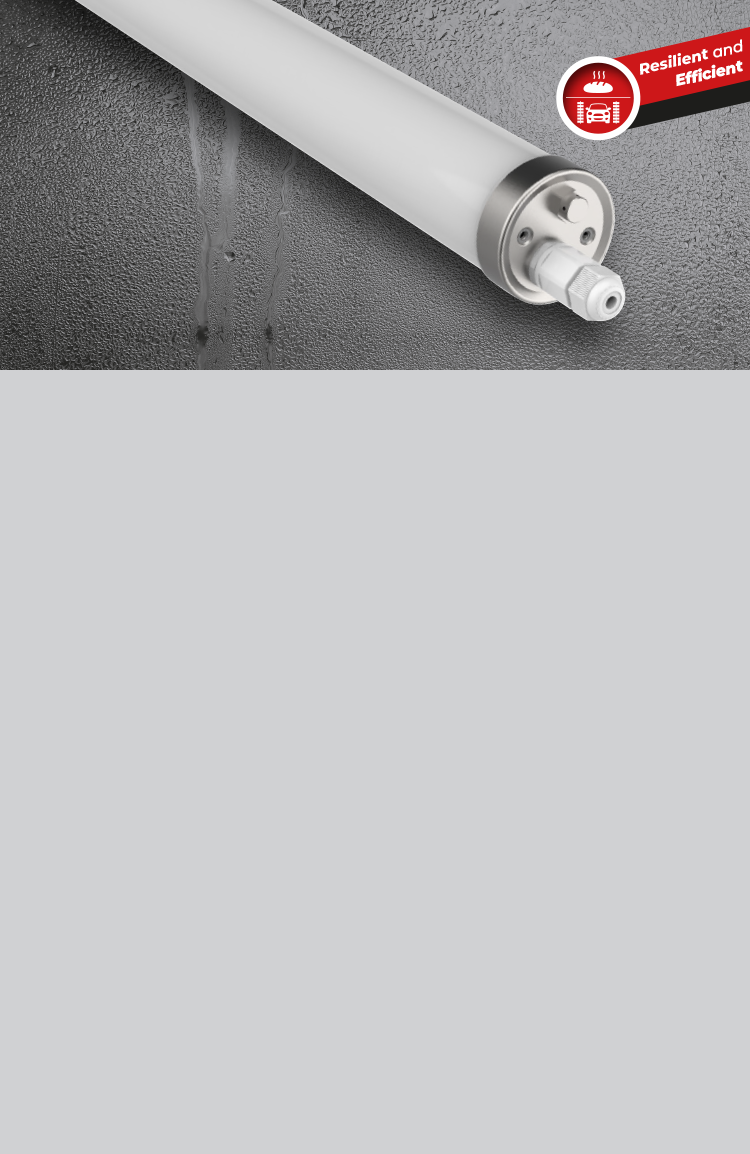

The IP69K rated luminaire is ideal for fields of application, where its ability to withstand the intrusion of solids and liquids is a must. It combats even high-pressure jets of hot water with no negative consequence. Perfect for food-processing industry, car washes, underpass areas and logistics sites.
IBV_RESISTUBE_750x1154-2

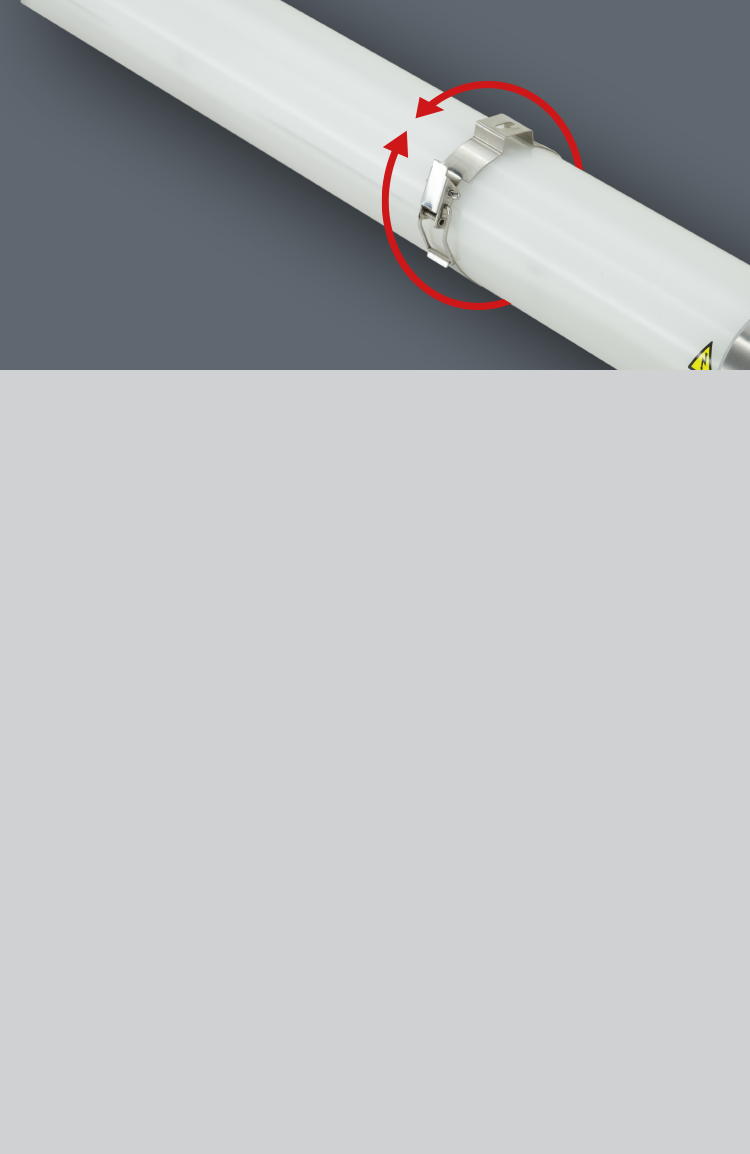

The extruded opal diffuser is made of UV stabilised, opalised material ensuring well balanced light distribution and non-glare illumination. The light angle is adjustable thanks to the freely rotatable tube in the clamps (no shadows).
IBV_RESISTUBE_750x1154-3

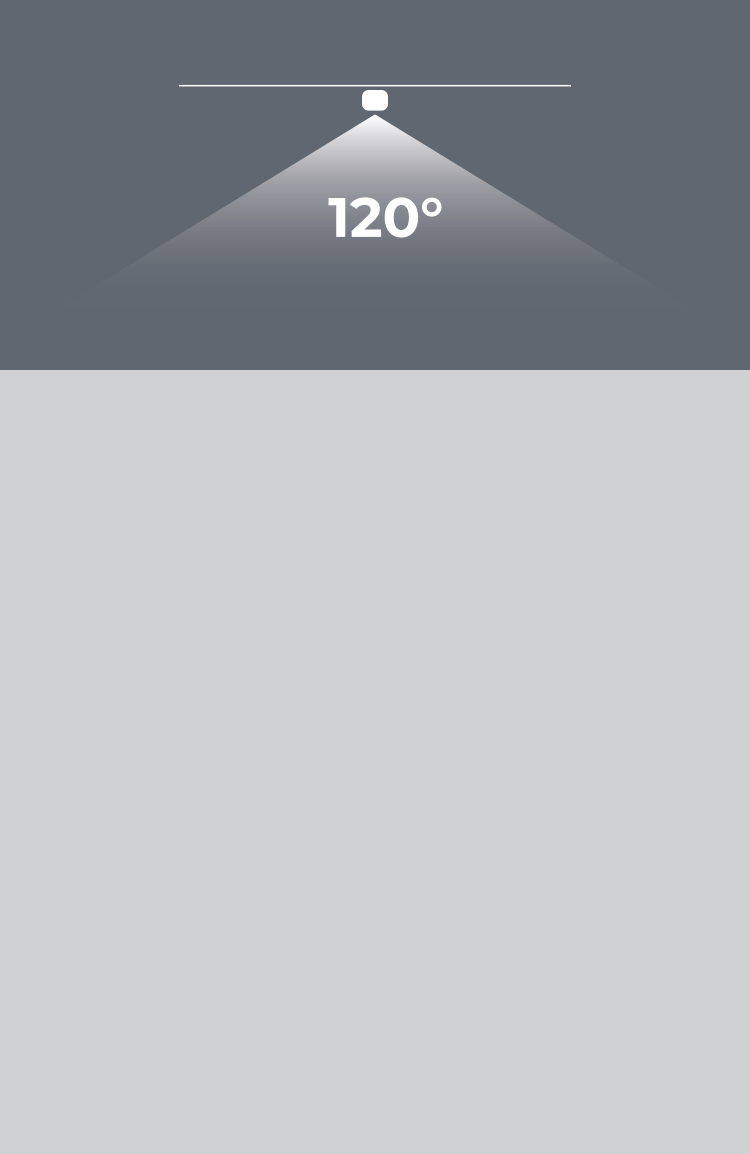

Resistube offers 120°beam angle ensuring wide beam light distribution with uniform lighting, even at low heights.
IBV_RESISTUBE_750x1154-4

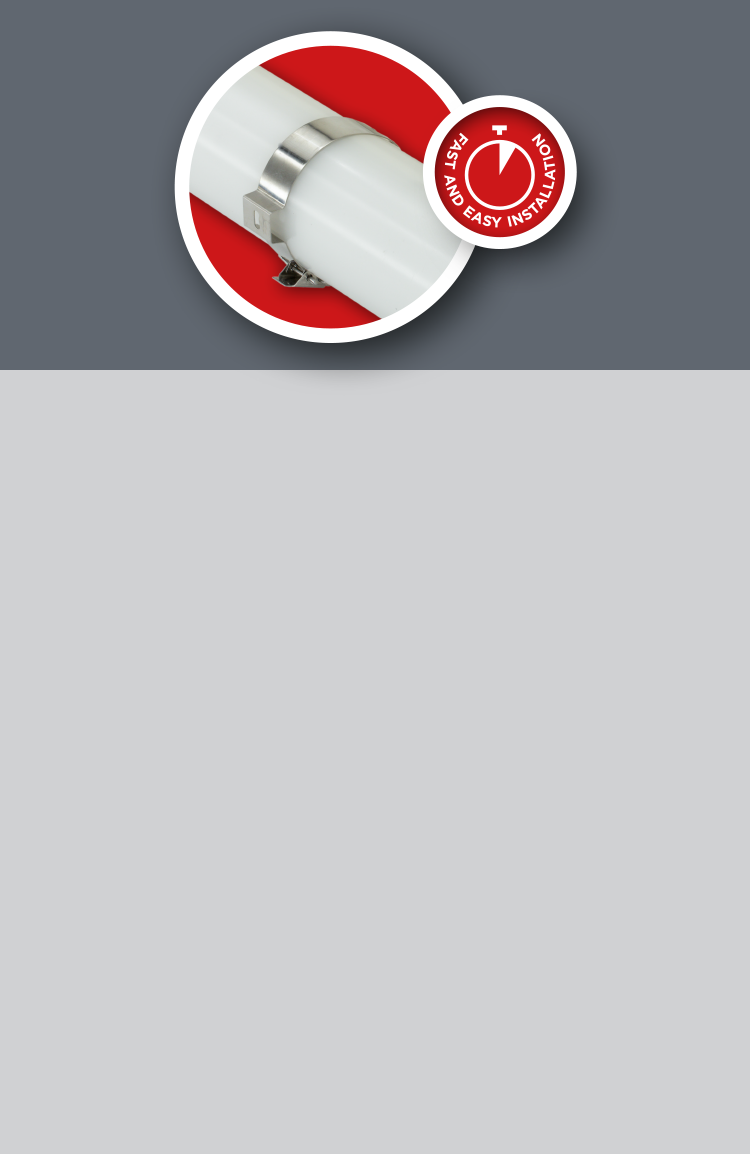

Mounting options: the lighting fixture can be installed either on surface (wall or ceiling) or suspended. The stainless-steel mounting clamps ensure fast and easy mounting, and they can be positioned freely on the luminaire. Thanks to the application of the rapid connector, electrical connection is also fast and easy.
IBV_RESISTUBE_750x1154-5

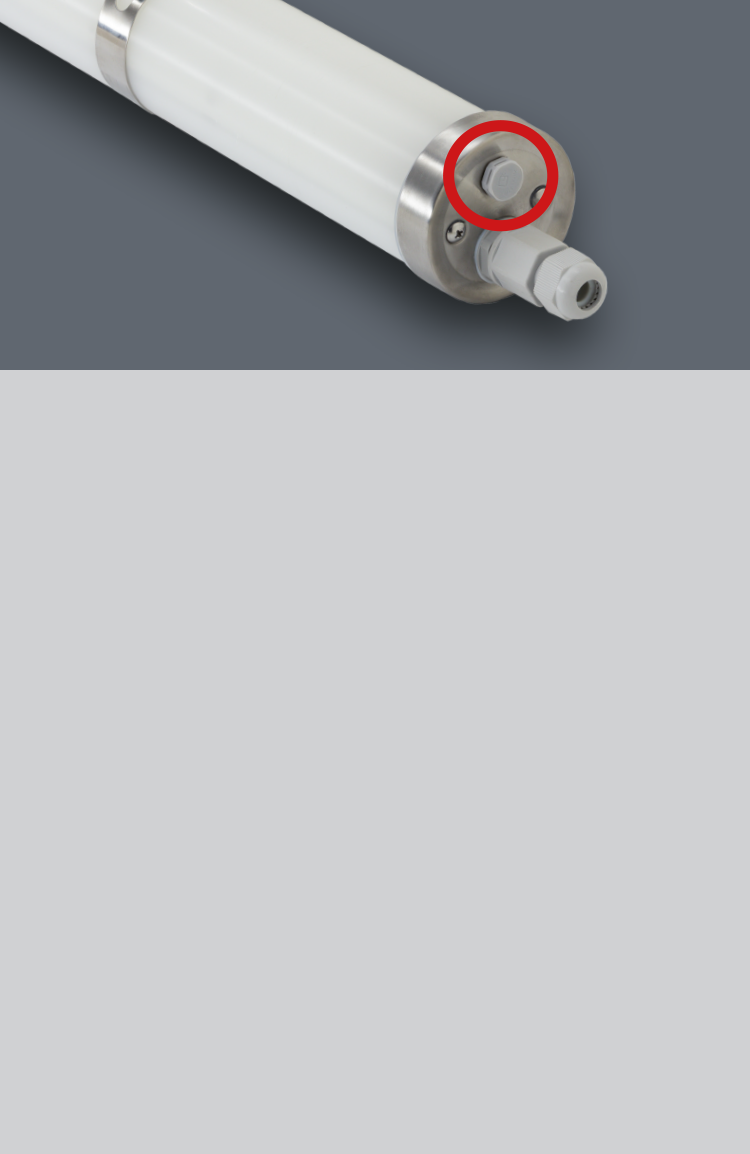

Resistube is ideal for food industry, not only because of its high IP protection, but also because of its venting plug that prevents the condensation of humidity inside the luminaire.
IBV_RESISTUBE_750x1154-6

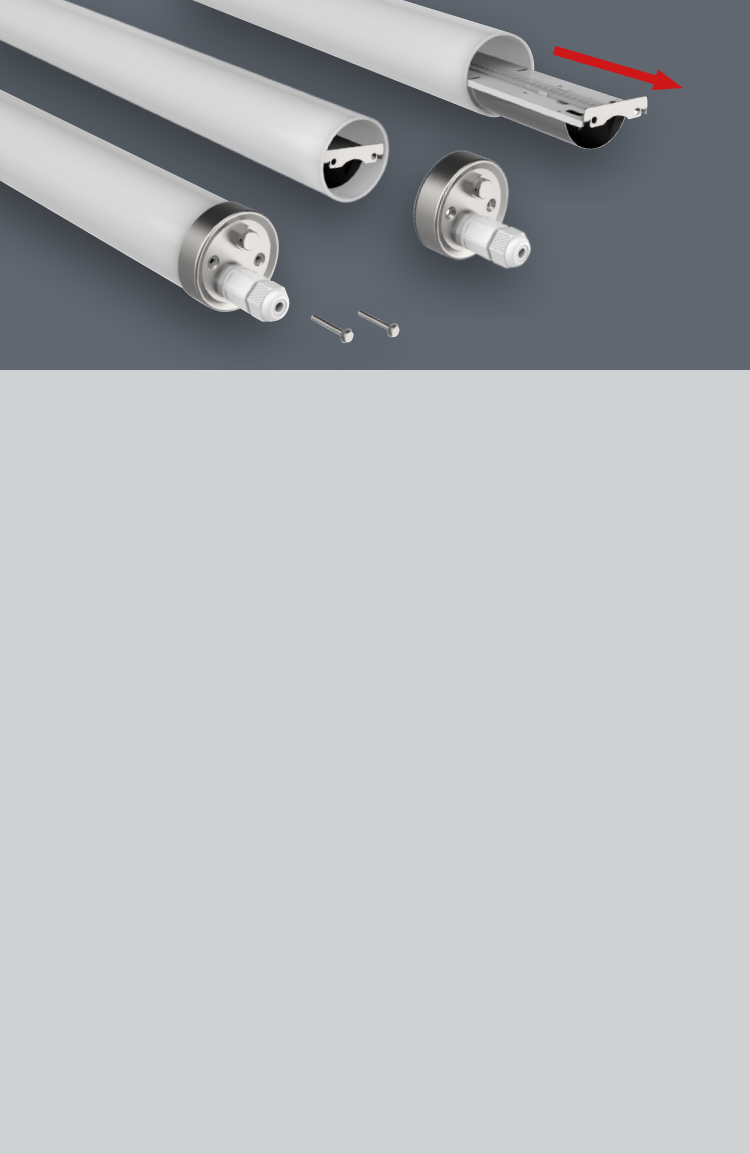

The lighting fixture provides repairable design allowing for the opening of the luminaire in 3 steps.

PARAMETERS

Built-in

Options

Further options

On request

TECHNICAL DESCRIPTION

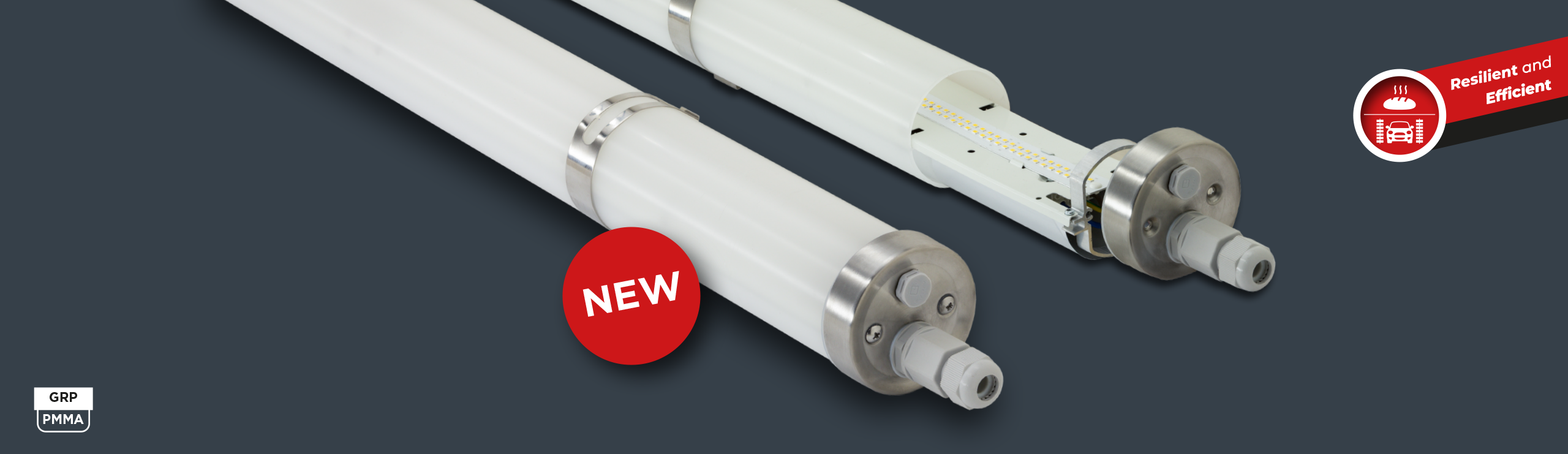

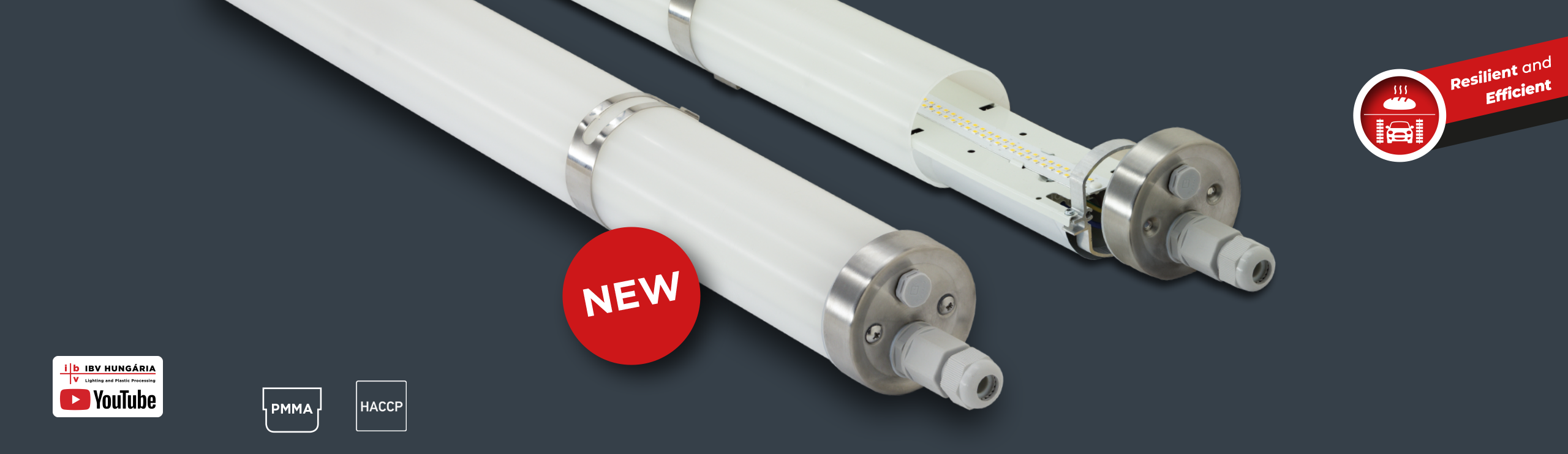

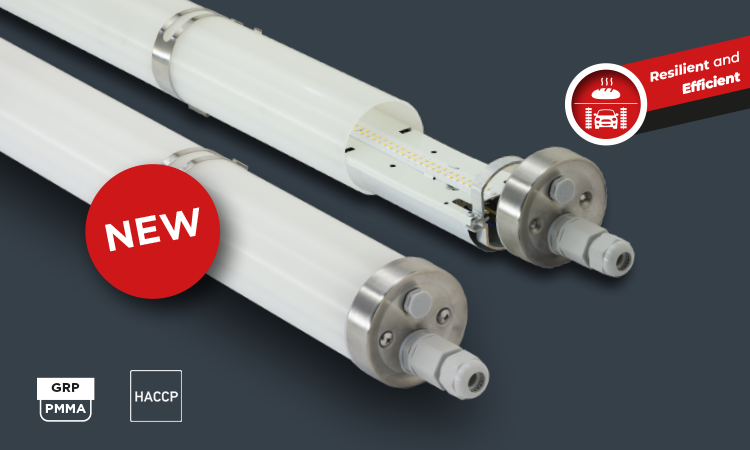

793-RESISTUBE

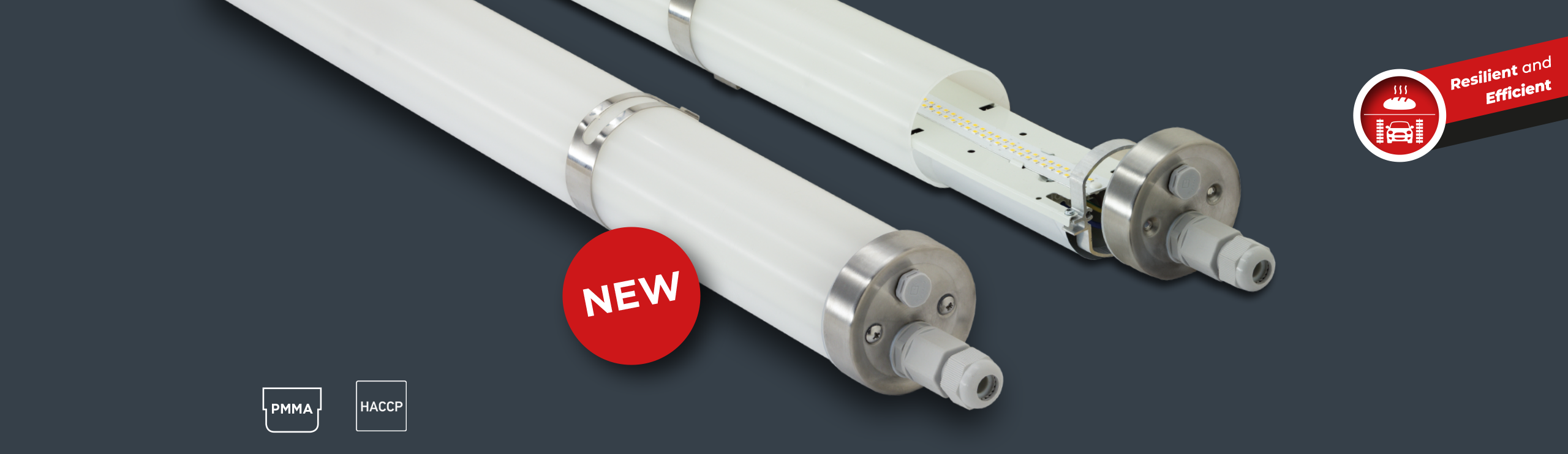

Professional extruded dust and waterproof luminaire

Ideal for food industry and car washes, among other industrial applications

YOUR MAIN BENEFITS

The luminaire combats even high-pressure jets of hot water with no negative consequence. The IP67K rated lighting fixture is ideal for fields of application, where its ability to withstand the intrusion of solids and liquids is a must.

FIELD OF APPLICATION

Due to the construction principles of the extruded profile and the end caps, our LED fixture ensures high grade of protection (IP69K) against dust, contamination and water permeation. In accordance with its IP grade, it can be widely used to illuminate spaces with dusty, humid environment. Thanks to its enhanced weather and chemical resistance, 793-Resistube is extremely versatile and suitable for a plenty of applications where errorfree functioning is desired.
The extruded PMMA profile allows us usage in food-processing industry, underpass areas, car washes and logistics sites.

TECHNICAL DESCRIPTION AND BENEFITS

Housing: Made of opalized Acrylic (PMMA) by extrusion. The optical diffusing (upper) part is opalised. Thanks to the strengthened Acrylic raw material used, the whole fitting shows good mechanical strength and heat and shock resistance (IK06). At the same time further main advantages of the PMMA also apply such as weather, chemical and UV resistance.

The extruded opal diffuser offers you:

– high light transmissivity (up to 89%)
– homogenous, well-balanced light dispersing (no shadows)
– elimination of the dazzling effect (no glare)
– unique appearance and clean impression (no clips, no dots of the single LED´s)

End caps: Made of stainless steel.
Gear tray (reflector): White powder coated steel sheet with customized LED solutions.
Electrical components: The adequate power supply is ensured through electronic driver, that is built into the luminaire.

DOWNLOAD

Catalogue pages

Schematic drawing

Mounting instructions

Quality Certificates and Declarations

BIM

Product pictures

Photometric data

Photometric curves

Technical datasheets

MOUNTING INSTALLATION

MOUNTING INSTALLATION

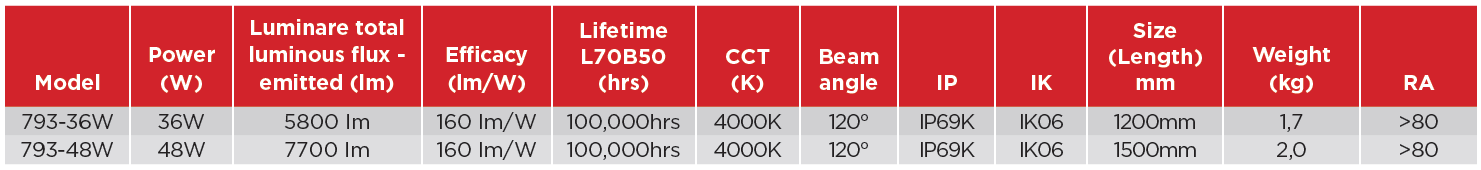

TECHNICAL DATA
