792-QUICKFIT

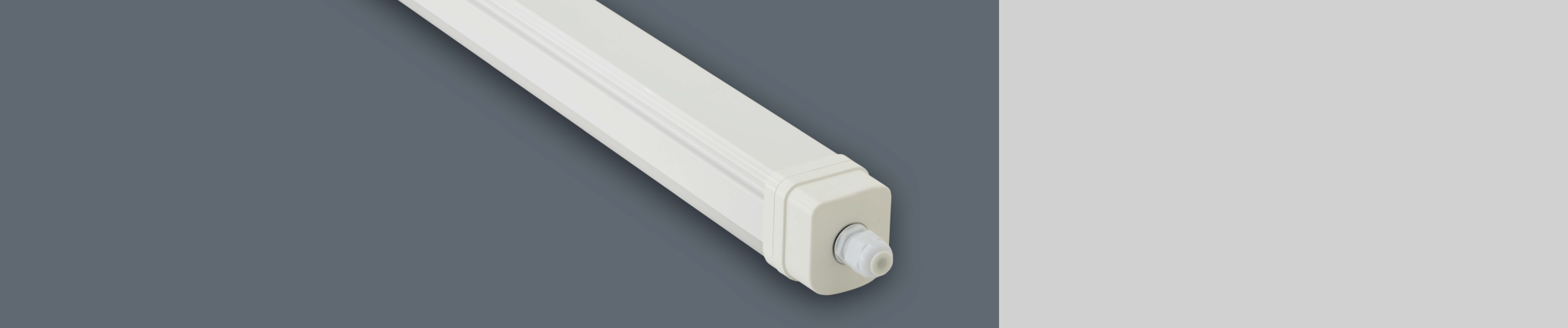

Quickfit_2560x535_slider_Oldal_1
The IP69K rated luminaire is ideal for fields of application, where its ability to withstand the intrusion of solids and liquids is a must. It combats even high-pressure jets of hot water with no negative consequence. Perfect for food-processing industry, car washes, underpass areas and logistics sites

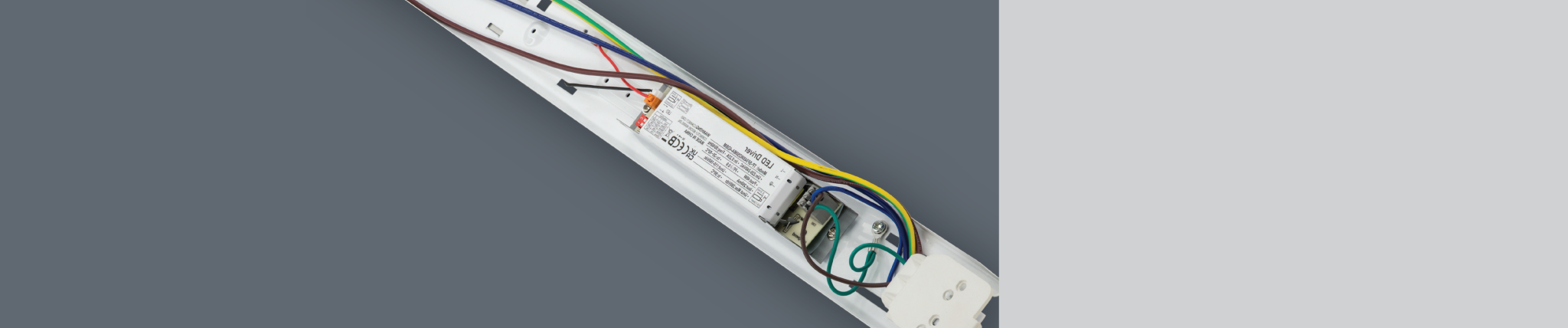

Quickfit_2560x535_slider_Oldal_2
The extruded opal diffuser is made of UV stabilised, opalised material ensuring well balanced light distribution and non-glare illumination. The light angle is adjustable thanks to the freely rotatable tube in the clamps (no shadows).

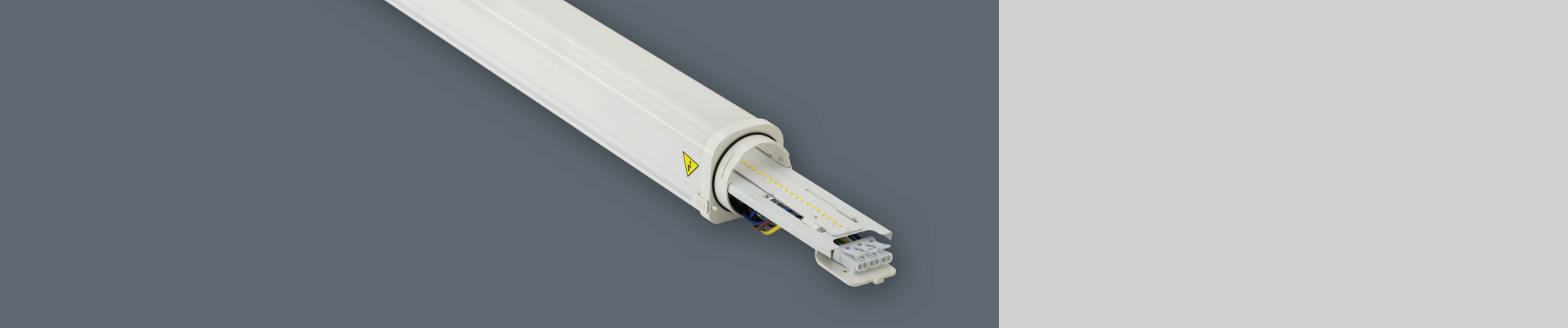

Quickfit_2560x535_slider_Oldal_3
Resistube offers 120°beam angle ensuring wide beam light distribution with uniform lighting, even at low heights.
Quickfit_2560x535_slider_Oldal_4
Mounting options: the lighting fixture can be installed either on surface (wall or ceiling) or suspended. The stainless-steel mounting clamps ensure fast and easy mounting, and they can be positioned freely on the luminaire. Thanks to the application of the rapid connector, electrical connection is also fast and easy.
IBV_RESISTUBE_750x1154-1
The IP69K rated luminaire is ideal for fields of application, where its ability to withstand the intrusion of solids and liquids is a must. It combats even high-pressure jets of hot water with no negative consequence. Perfect for food-processing industry, car washes, underpass areas and logistics sites.
IBV_RESISTUBE_750x1154-2
The extruded opal diffuser is made of UV stabilised, opalised material ensuring well balanced light distribution and non-glare illumination. The light angle is adjustable thanks to the freely rotatable tube in the clamps (no shadows).
IBV_RESISTUBE_750x1154-3
Resistube offers 120°beam angle ensuring wide beam light distribution with uniform lighting, even at low heights.
IBV_RESISTUBE_750x1154-4
Mounting options: the lighting fixture can be installed either on surface (wall or ceiling) or suspended. The stainless-steel mounting clamps ensure fast and easy mounting, and they can be positioned freely on the luminaire. Thanks to the application of the rapid connector, electrical connection is also fast and easy.
IBV_RESISTUBE_750x1154-5
Resistube is ideal for food industry, not only because of its high IP protection, but also because of its venting plug that prevents the condensation of humidity inside the luminaire.
IBV_RESISTUBE_750x1154-6
The lighting fixture provides repairable design allowing for the opening of the luminaire in 3 steps (without the risk of losing high IP protection).

PARAMETERS

Built-in

Options

On request

TECHNICAL DESCRIPTION

792-QUICKFIT

Industrial dust – and waterproof extruded luminaire for numerous application areas.

YOUR MAIN BENEFITS

Comfortable and quick installation. Extruded profile with outstanding light transmissivity. Slender design and clean impression. Economical and cost-efficient.

FIELD OF APPLICATION

Thanks to the construction principles of the gasket, end caps and the extruded profile our lighting fixtures ensure a high grade of protection (IP 66) against dust, contamination, and water permeation. In accordance with their IP grade, they can be widely used to illuminate spaces with dusty and humid environment. When using outdoors, the fittings should be protected against direct sunlight and adverse weather conditions.

TECHNICAL DESCRIPTION AND BENEFITS

Housing: Made of bi-coloured Polycarbonate (PC) by extrusion. The housing is made in white (RAL9016) colour. The diffusing (upper) part is opalised. Thanks to the used raw material the whole fitting shows very high mechanical strength and high heat and shock resistance (IK08).

The extruded opal diffuser offers you:

– extremely high light transmissivity (up to 90%) unique on the market
– homogenous, well-balanced light dispersing (no shadows)
– elimination of the dazzling effect (no glare)
– unique appearance and clean impression (no clips, no dots of the single LED´s)
– keeping the usual, well-known features of the diffuser such as heat resistance, mechanical features, UV stabilization etc.

End caps: Made of Polycarbonate (PC).

Gear tray (reflector): White powder coated steel sheet.

Electrical components: The adequate power supply is ensured through electronic driver, that is built into the luminaire.

DOWNLOAD

Catalogue pages

Schematic drawing

Mounting instructions

Quality Certificates and Declarations

BIM

Product pictures

Photometric data

Photometric curves

Technical datasheets

MOUNTING INSTALLATION

MOUNTING INSTALLATION

TECHNICAL DATA
