771-ORIENT +50°C

led_product_slider_desktop_771orient+50c_01
Our opal diffuser has an

outstanding light transmissivity up to 90%. With this great light permeability, it is an excellent choice for luminaries equipped with LED modules

led_product_slider_desktop_771orient+50c_02

The Opal diffusers are made of UV stabilized opalised material, specially developed for LED applications. This ensures among others a well-balanced light distribution and the elimination of glare.

led_product_slider_desktop_771orient+50c_02

Moreover the diffuser made of injection moulded polycarbonate (PC) excels at highest impact resistance of IK10.

Fixing of the diffuser to the body: With highly resistant stainless steel clips. Optionally tamper-proof clips available on request.

led_product_slider_desktop_771orient+50c_03

Ways of installing

1. With stainless steel suspension brackets (easy-to-install) onto the ceiling.

2. Suspension on chains with stainless steel suspension brackets mounted with hooks.

led_product_slider_desktop_771orient+50c_04

Depending on customer requirements we can reach different levels of luminous flux (lumen) as well as luminous efficacy (Im/Watt). Details see attached overview.

led_product_slider_desktop_771orient+50c_05

The gear tray is made of white powder coated steel sheet according to Zhaga standards. On request customisation is possible.

led_product_slider_desktop_771orient+50c_06

Option: the Rapid Connector enables the electrical connection Without disassembling the luminaire, thus avoiding a potential damage of the LED’s inside the luminaire through electronic discharge (ESD)

led_product_slider_desktop_771orient+50c_07
In order to optimise the thermal management of the luminaire at high ambient temperatures, the driver is fixated to the gear tray with a heat sink plate. Thus heat sensitive LED components function properly up to Ta +50°C.
led_product_slider_desktop_771orient+50c_08

In order to ensure maximum heat chemical and weather resistance even under tough conditions, the gasket between the diffuser and the housing is made of the silicon-based foam with enhanced resistance

led_product_slider_mobile_771orient+50c_01
Our opal diffuser has an

outstanding light transmissivity up to 90%. With this great light permeability, it is an excellent choice for luminaries equipped with LED modules

led_product_slider_mobile_771orient+50c_02

The Opal diffusers are made of UV stabilized opalised material, specially developed for LED applications. This ensures among others a well-balanced light distribution and the elimination of glare.

led_product_slider_mobile_771orient+50c_02

Moreover the diffuser made of injection moulded polycarbonate (PC) excels at highest impact resistance of IK10.

Fixing of the diffuser to the body: With highly resistant stainless steel clips. Optionally tamper-proof clips available on request.

led_product_slider_mobile_771orient+50c_03

Ways of installing

1. With stainless steel suspension brackets (easy-to-install) onto the ceiling.

2. Suspension on chains with stainless steel suspension brackets mounted with hooks.

led_product_slider_mobile_771orient+50c_04

Depending on customer requirements we can reach different levels of luminous flux (lumen) as well as luminous efficacy (Im/Watt). Details see attached overview.

led_product_slider_mobile_771orient+50c_05

The gear tray is made of white powder coated steel sheet according to Zhaga standards. On request customisation is possible.

led_product_slider_mobile_771orient+50c_06

Option: the Rapid Connector enables the electrical connection Without disassembling the luminaire, thus avoiding a potential damage of the LED’s inside the luminaire through electronic discharge (ESD)

led_product_slider_mobile_771orient+50c_07
In order to optimise the thermal management of the luminaire at high ambient temperatures, the driver is fixated to the gear tray with a heat sink plate. Thus heat sensitive LED components function properly up to Ta +50°C.
led_product_slider_mobile_771orient+50c_08

In order to ensure maximum heat chemical and weather resistance even under tough conditions, the gasket between the diffuser and the housing is made of the silicon-based foam with enhanced resistance

PARAMETERS

Built-in

Options

Further options

On request

TECHNICAL DESCRIPTION

771-ORIENT +50°C

Industrial dust and waterproof luminaires with LED modules

771-Orient is available in the following sizes: 1200mm, 1500mm. Available in IP65

YOUR MAIN BENEFITS

A professional luminaire for wide usage, that fulfils the strongest quality requirements. Especially for applications where high heat resistance (up to Ta +50 °C) is required.

FIELD OF APPLICATION

Due to the construction principles of gasket, closing system and diffuser our fixtures ensure a high grade of protection (IP65) against dust, contamination, and water permeation. In accordance with their IP grade they can be used widely to illuminate spaces with dusty and humid environment. Thanks to its enhanced
heat resistance, 771-Orient is especially suitable for applications, where error-free functioning at higher ambient temperature is desired.
When using outdoors, the fittings should be protected against direct sunlight and adverse weather conditions.

TECHNICAL DESCRIPTION AND BENEFITS

Housing: It is made of flame retardant glass fibre reinforced polyester (on request suitable for 850°C glow wire test too), in light grey (RAL7035) colour. This material has very good temperature resistance, mechanical stability, furthermore, it is a good electrical insulator, it resists the impacts of several chemicals and the impacts of weather conditions. Its stability of size and shape at changing temperatures is excellent.

The diffuser is available in injection moulded opal polycarbonate (PC) with extremely high light permeability and well-balanced light dispersing. Main advantages: High mechanical strength and high heat and shock resistance and excellent transparency.
The diffusers are designed with respect to their optical characteristics and are UV resistant.

In order to ensure maximum heat, chemical and weather resistance even under tough conditions.

Gasket: silicon-based endless foam with enhanced resistance.

Fixing the diffuser to the body: with highly resistant stainless-steel clips
Gear tray (reflector): White powder coated steel sheet according to Zhaga standards or customised.

Electrical components: in accordance with the requested specification suitable for LED technology, details see under technical data.

DOWNLOAD

Catalogue pages

Schematic drawing

Mounting instructions

Quality Certificates and Declarations

BIM

Product pictures

Photometric data

Photometric curves

Technical datasheets

MOUNTING INSTALLATION

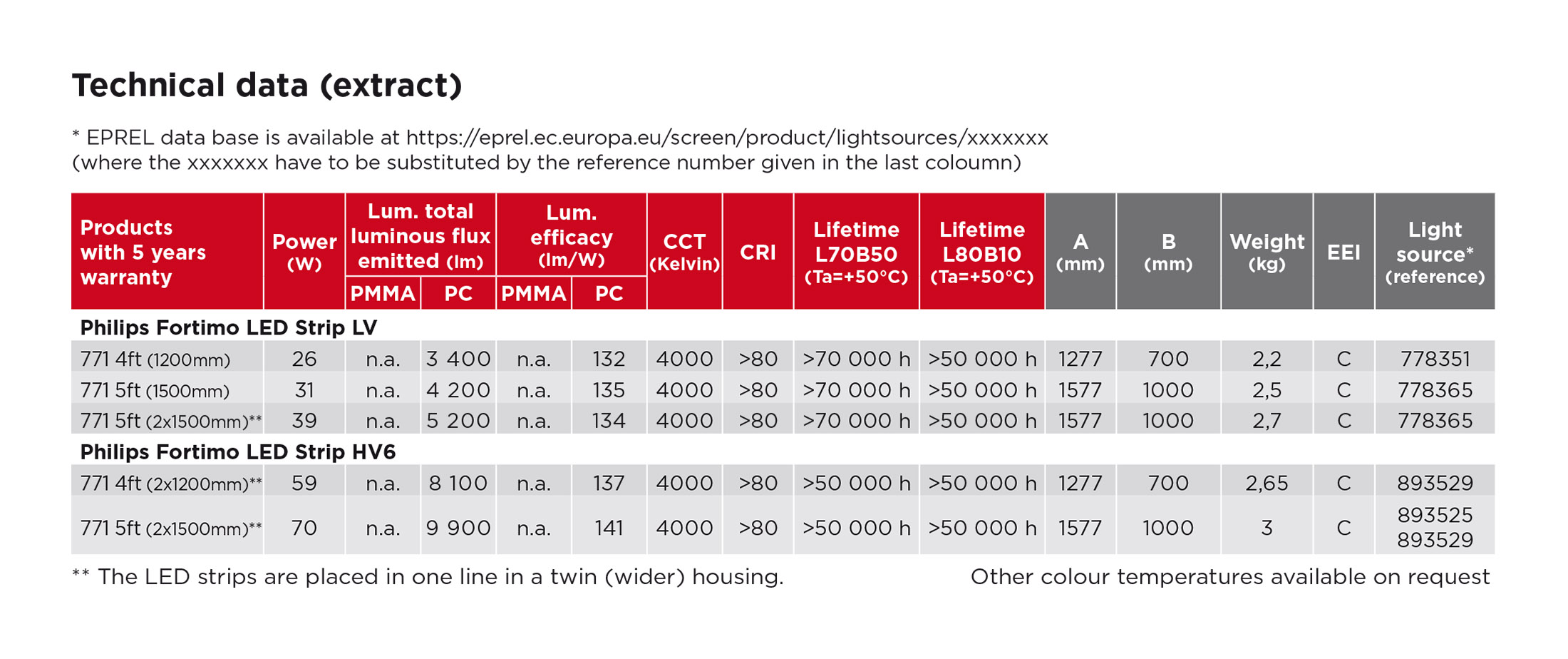

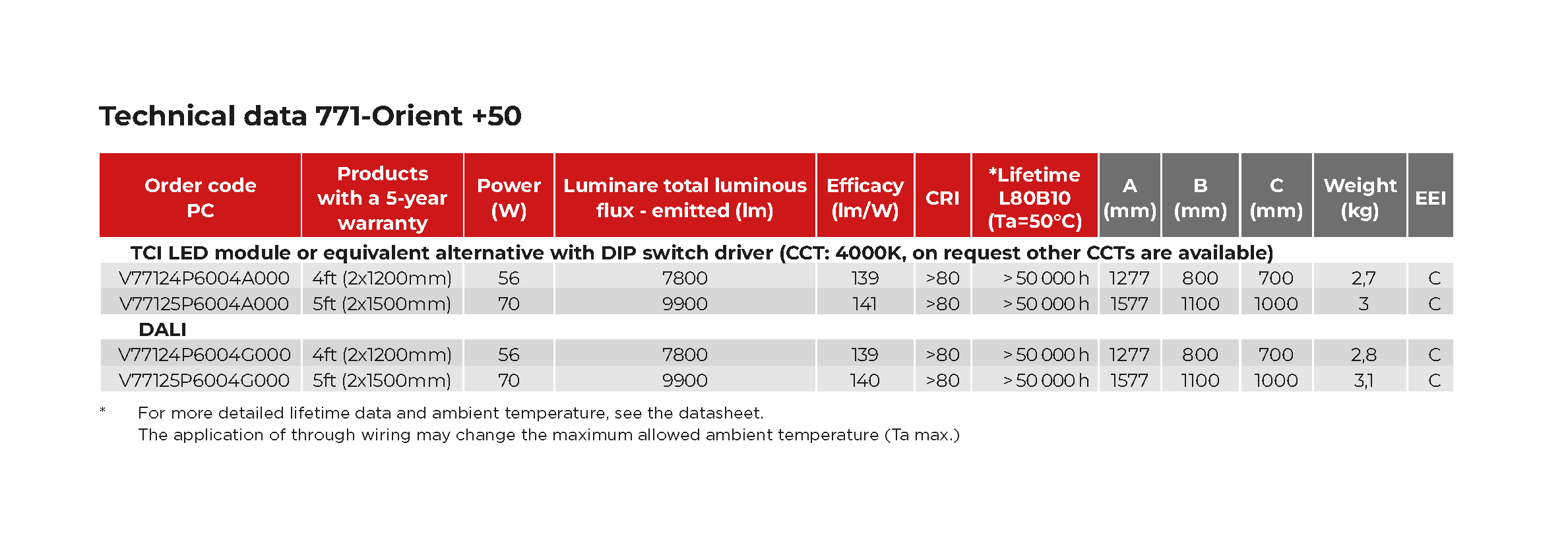

TECHNICAL DATA
