870-INSPIRE +/-
High-end dust and waterproof luminaires with LED modules.
Professional quality suitable for wide application 2-in-1: Error-free functioning at extreme ambient temperature
YOUR MAIN BENEFITS
A professional luminaire adapted for extremely high and extremely low ambient temperatures. (Ta: -30 to +50 °C) for wide usage, that fulfils the strongest quality requirements.
FIELD OF APPLICATION
Thanks to the construction principles of gasket, closing system and diffuser our LED fixtures ensure a high grade of protection (IP66) against dust, contamination, and water permeation. In accordance with their IP rating they can be widely used to illuminate spaces with dusty and humid environments. Thanks to its enhanced temperature resistance, 870-Inspire +/- is especially suitable for applications, where error-free functioning at high and low ambient temperature is desired (industrial plants, cold stores, in countries with subtropic climate…etc.)
When using outdoors, the fittings should be protected against direct sunlight and adverse weather conditions. Under 0°C the application of venting plug or venting cable gland is necessary.
TECHNICAL DESCRIPTION AND BENEFITS
Housing: Available with PC or GRP body, in light grey (RAL7035) colour.
In case of PC: It is made of flame retardant injection moulded polycarbonate (PC) – suitable for 850°C glow wire test too-, the Polycarbonate has very high mechanical strength and allows us to reach an excellent shock resistance.
In case of GRP: It is made of flame retardant GRP – glass fibre reinforced polyester – on request suitable for 850°C glow wire test too-, glass fibre reinforced polyester has very good temperature resistance, mechanical stability, furthermore, it is a good electrical insulator, it resists the impacts of several chemicals and the impacts of weather conditions. Its stability of size and shape at changing temperatures is excellent.
Diffuser: Available in PC – injection moulded opalised polycarbonate (high mechanical strength and high heat and shock resistance). Thanks to its enhanced impact resistance, 870-Inspire +/- is especially suitable for applications, where a high IK impact rating at extreme ambient temperature is required.
Further benefits:
– Extremely high light transmissivity (up to 90%)
–Homogenous, well-balanced light dispersing (no shadows)
– Keeping the usual, well-known features of the diffuser such as chemical and heat resistance, mechanical features, UV stabilization etc.
– Universal width (no single and twin) simplifies the light calculation.
Gasket: silicon-based endless foam with enhanced resistance.
Fixing the diffuser to the body: With stainless steel clips.
Gear tray (reflector): The gear tray is integrated into the diffuser thus enabling a cost efficient and user-friendly installation even without disassembling the luminaire. White powder coated steel sheet, the LED modul mounting positions according to Zhaga standards or customized.
Electrical components: The adequate power supply is ensured through electronic driver.
DOWNLOAD
Catalogue pages
Schematic drawing
Mounting instructions
Quality Certificates and Declarations
BIM
Product pictures
Photometric data
Photometric curves
Technical datasheets
MOUNTING INSTALLATION

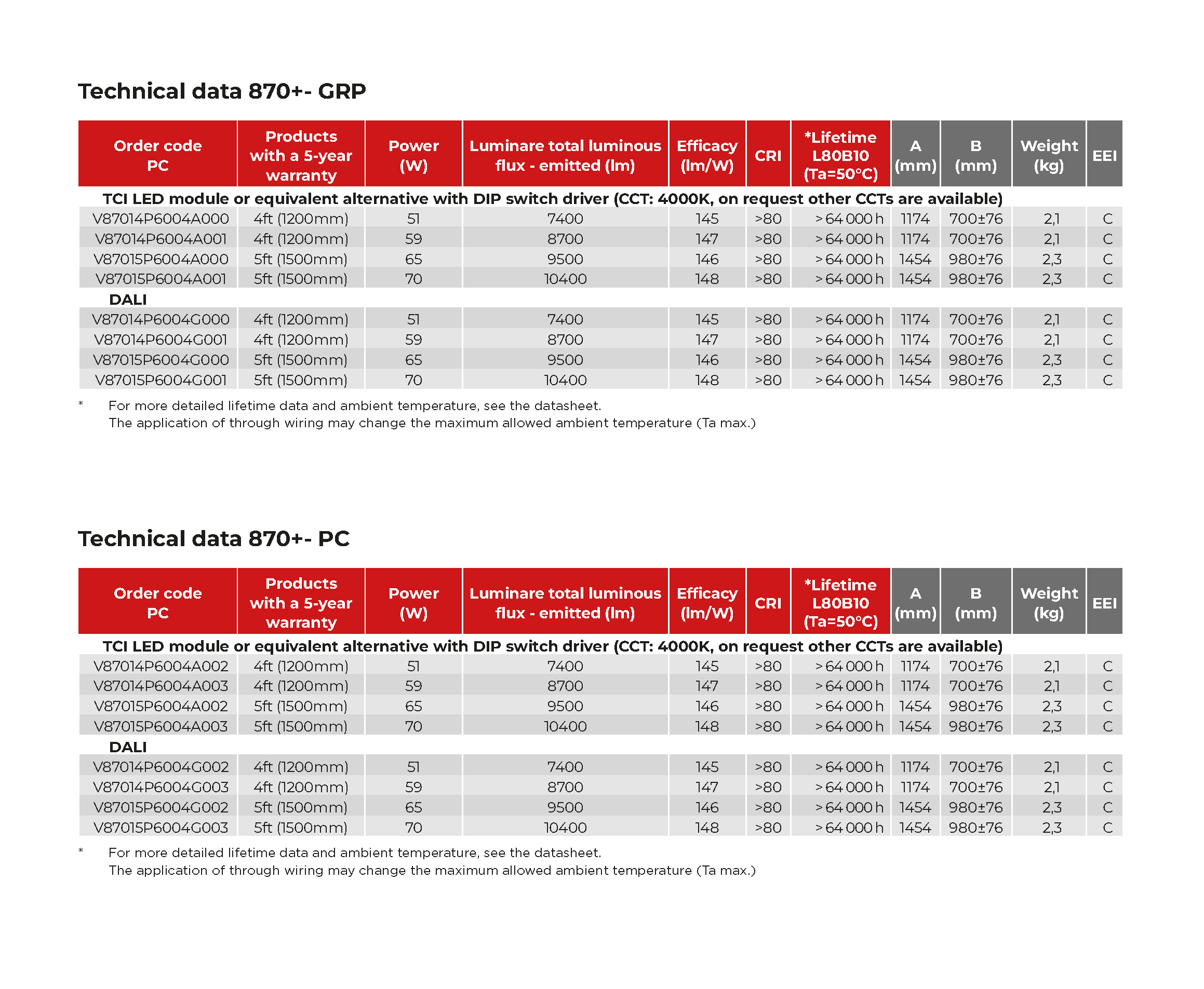

TECHNICAL DATA
